Super 35 TC bakélite

Técalémit Radio; Paris

  • Year
  • 1934–1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 100378

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 112.5 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set / 110; 130; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

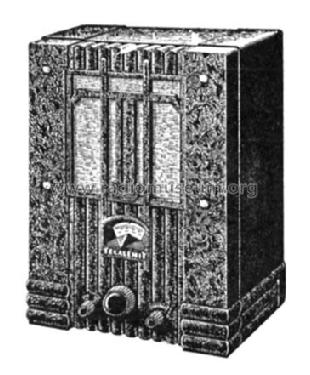

  • Model: Super 35 TC [bakélite] - Técalémit Radio; Paris
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 300 x 410 x 200 mm / 11.8 x 16.1 x 7.9 inch
  • Notes
  • 2 gammes d'ondes : PO de 200 à 550 m, GO de 900 à 2000 m. Prise pick-up et HP supplémentaire. Barette à broches pour la commutation alternatif-continu.

    Coffret en bakélite.

    Deux exécutions :

    • modèle pour 110 volts, fonctionne sur 130 ou 220 volts avec cordon chauffant de 50 ou 290 ohms réspectivement, utilise ampoule de cadran 6 V / 0.15 A
    • modèle à prise double 110-220 volts, utilise lampe ballast D304 et ampoule de cadran 4 V / 0.1 A
  • Price in first year of sale
  • 995.00 FRF
  • Circuit diagram reference
  • La Documentation du Revendeur - Radio
  • Literature/Schematics (1)
  • -- Original prospect or advert (Gamme 1936)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
