• Country
• Japan

• Manufacturer / Brand
• Tech Instruments Co. Ltd.; Tokyo

• Year
• 1963 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 134938

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12BH7 6AR5

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org

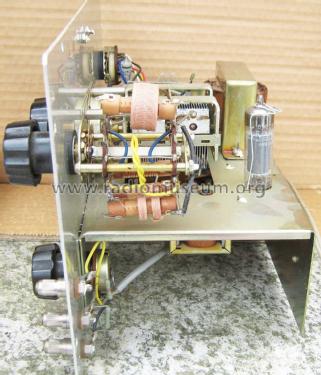

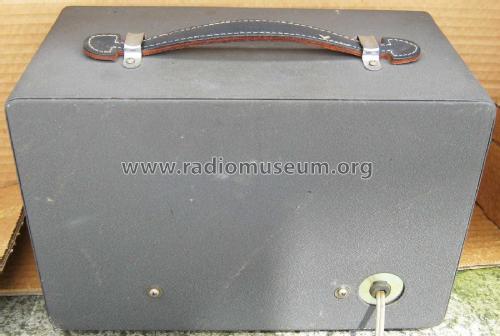

• Model: Signal Generator TE-20 - Tech Instruments Co. Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 265 x 185 x 140 mm / 10.4 x 7.3 x 5.5 inch

• Notes

• Tech HF-Signalgenerator TE-20.

  Frequenzbereiche:
  120–300, 320–1000 kHz, 1–3,5, 3,5–11, 11–38, 36–130, 120–260 MHz; HF-Ausgangsspannung:
  0,1 V, durch Abschwächer grob und fein regelbar;
  Modulation:
  400 Hz, max. 60 %,
  Fremdmodulation möglich;
  NF-Ausgang: 400 Hz, Ausgangsspannung regelbar.

  Siehe auch:
  Kyoritsu Electrical:
  Signal Generator K-127.
  Nadler, Hannover:
  Signal Generator K-127.
  Belco, Tokyo:
  HF-Prüfgenerator TE-20

  Preis Hannes Bauer-Katalog 1976: 139,-DM

• Price in first year of sale
• 155.00 DM

• Mentioned in
• Hannes Bauer-Katalog, 1976

• Literature/Schematics (1)
• Rim Bastelbuch 1965 S.224, Radio-Rim, München

• Author
• Model page created by John Koster. See "Data change" for further contributors.
