Wave Analyzer ME-301

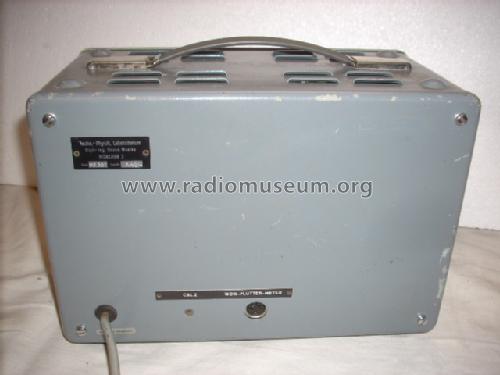

Wave Analyzer ME-301; Technisch (ID = 814763) Equipment Wave Analyzer ME-301; Technisch (ID = 814765) Equipment
Wave Analyzer ME-301; Technisch (ID = 814768) Equipment
Use red slider bar for more.
Wave Analyzer ME-301; Technisch (ID = 814763) Equipment
Technisch: Wave Analyzer ME-301 [Equipment] ID = 814763 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wave Analyzer ME-301, Technisch Physikalisches Laboratorium; München

Country:  Germany
Manufacturer / Brand:  Technisch Physikalisches Laboratorium; München
alternative name

Woelke, Bruno, Dipl. Ing.
Year: 1975 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 1:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Wave Analyzer ME-301 - Technisch Physikalisches
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 210 x 165 mm / 11.8 x 8.3 x 6.5 inch
Notes Range Hz: 1-3,3/3,2-10,5/10-33/32-105/100-330. Rückseitig 5pol DIN Buchse für Anschluß WOW-FLUTTER-METER. Tasten: DIRECT/FILTER/CAL/ON.
Source of data - - Data from my own collection

Model page created by Norbert Haselbach. See "Data change" for further contributors.
