• Country
• France

• Manufacturer / Brand
• Technical Radio (ou?)

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90112

• • Brand: Superselect

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF9 EB4 EL3N 6E5 AZ1

• Main principle
• Superheterodyne (common); 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 125/225 Volt

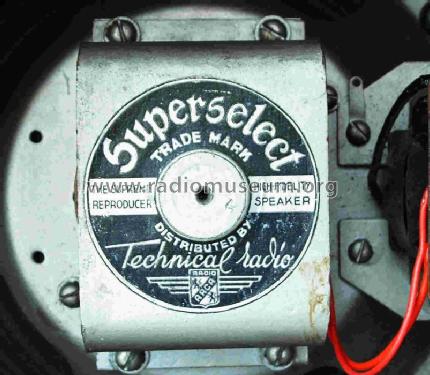

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Superselect 4243 WU - Technical Radio ou?

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 330 x 310 mm / 25.6 x 13 x 12.2 inch

• Net weight (2.2 lb = 1 kg)
• 14.8 kg / 32 lb 9.6 oz (32.599 lb)

• Author
• Model page created by Herbert Heintges. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
