Compact Disc Player SL-P117

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 318807

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player SL-P117 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 77 x 240 mm / 16.9 x 3 x 9.4 inch
  • Notes

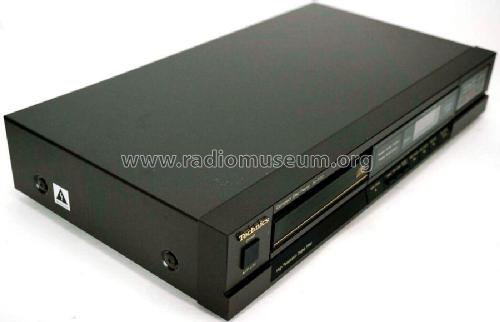

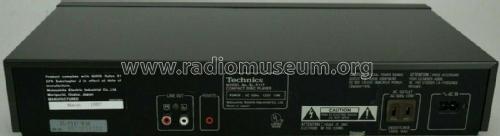

  • A stereo hi-fi compact disc player in a black metal case. RCA phono Line Out sockets, remote control terminal, unswitched AC outlet.

    Specification
    Audio
    No. of channels: 2 (left and right stereo)
    Frequency response: 2-20,000Hz ±0.5dB (EIAJ)
    Dynamic range: 92dB
    S/N ratio: 96dB (EIAJ)
    Harmonic distortion: 0.004% (1 kHz, 0dB)
    Total harmonic distortion 0.006% (1 kHz, 0dB) (EIAJ)
    Channel separation: 96dB (EIAJ)
    Wow and flutter: below measurable limit
    Output
    Output voltage: 2V (at 0dB) (EIAJ)
    Output impedance: 550Ω
    Load impedance:  more than 10kΩ
    Signal Format
    Sampling frequency: 44.1 kHz
    Correction system: Technics Super Decoding Algorithm
    D-A conversion: 16-bit linear
    Pickup
    Acess time 1 second (access to last track)
    Light source: Semiconductor laser
    Wavelength: 780 nm
    Traverse system High-speed linear access system

    Functions
    Automatic play: All tracks
    Direct access play: Track number
    Repeat play: Entire disc or programmed tracks
    Search: Forward/backward track skip
    Forward/backward manual search
    Program play: For up to 20 selections
    Preset edit play: Up to 99 minutes (for program play)
    Display: Total tracks, Current track, Programmed order
    Time display: min.,sec.
    Indicators Play, Pause, Repeat, Disc
    Disc loading: Motor-driven horizontal type

    Versions/Power Requirements
    (M) USA / 120V AC 60Hz
    (MC) Canada / 120V AC 60Hz

    Power Consumption: 10W

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual SL-P117 Compact Disc Player)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
