Digital Integrated Amplifier SU-X990D

Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120499) Ampl/Mixer Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120501) Ampl/Mixer
Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120502) Ampl/Mixer Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120504) Ampl/Mixer

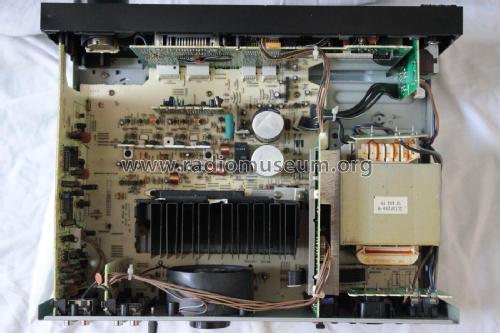

Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120505) Ampl/Mixer Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120506) Ampl/Mixer
Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120507) Ampl/Mixer Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120508) Ampl/Mixer
Use red slider bar for more.
Digital Integrated Amplifier SU-X990D; Technics brand (ID = 2120499) Ampl/Mixer
Technics brand: Digital Integrated Amplifier SU-X990D [Ampl/Mixer] ID = 2120499 1400x526
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Integrated Amplifier SU-X990D, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1988/1989 ? Category: Audio Amplifier or -mixer
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (max.)
from Radiomuseum.org Model: Digital Integrated Amplifier SU-X990D - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 360 x 128 x 300 mm / 14.2 x 5 x 11.8 inch
Notes

Power output: 100 watts per channel into 8Ohms (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 1%
Damping factor: 30
Input sensitivity: 3mV (MM), 200mV (line)
Signal to noise ratio: 75dB (MM), 82dB (line)
Channel separation: 60dB (line)
Output: 150mV (line)
Speaker load impedance: 8Ohms  to 16Ohms

Net weight (2.2 lb = 1 kg) 7.9 kg / 17 lb 6.4 oz (17.401 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
