• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154421

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 22 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

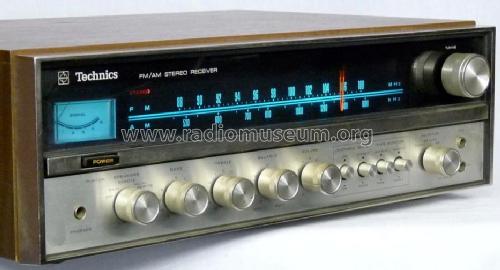

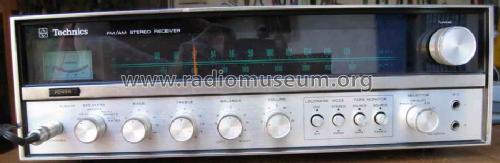

• Model: FM/AM Stereo Receiver SA-5200A - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 310 x 130 mm / 15.4 x 12.2 x 5.1 inch

• Notes
• FM/AM Stereo Receiver with 11 watts RMS per channel into 8 ohms. SA5200A comprend un CI AN211B

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 220.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
