FM/MW/LW 3 Band Stereo Receiver SA-200L

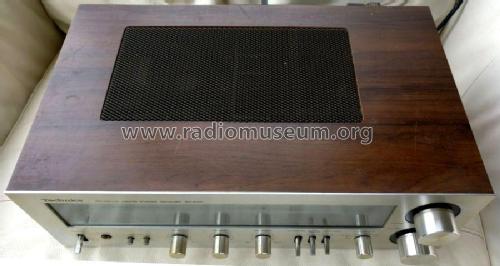

FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2169517) Radio FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2169518) Radio
FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2169519) Radio FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222949) Radio
FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222950) Radio FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222951) Radio

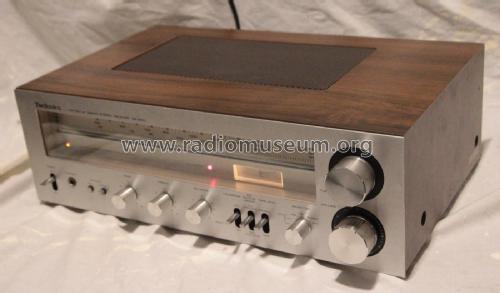

FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222952) Radio FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222953) Radio
FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222954) Radio FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2222955) Radio
Use red slider bar for more.

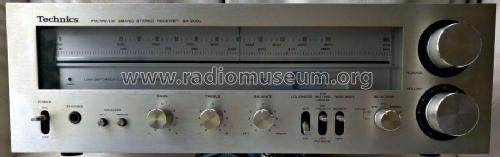

FM/MW/LW 3 Band Stereo Receiver SA-200L; Technics brand (ID = 2169517) Radio
Technics brand: FM/MW/LW 3 Band Stereo Receiver SA-200L [Radio] ID = 2169517 1400x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/MW/LW 3 Band Stereo Receiver SA-200L, Technics (brand):
Ebay UK auction item 152770337118 seller 1kozac

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1978/1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (unknown quality)
from Radiomuseum.org Model: FM/MW/LW 3 Band Stereo Receiver SA-200L - Technics brand
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 142 x 300 mm / 16.9 x 5.6 x 11.8 inch
Notes

AM/FM Stereo Receiver
Same as the the Technics SA-200 model with additional Long Wave coverage.

Power output: 25 watts per channel into 8 Ω (stereo)
Frequency response: 10 Hz to 30 kHz
Total harmonic distortion: 0.04 %
Damping factor: 32
Input sensitivity: 2.5 mV (MM), 180 mV (DIN), 150 mV (line)
Signal to noise ratio: 78 dB (MM), 95 dB (line)
Channel separation: 55 dB (line)
Output: 150 mV (line), 30 mV (DIN)
Speaker load impedance: 4 Ω to 16 Ω

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Howard Craven. See "Data change" for further contributors.
