Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L

Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688908) Radio Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688909) Radio
Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688910) Radio Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688911) Radio

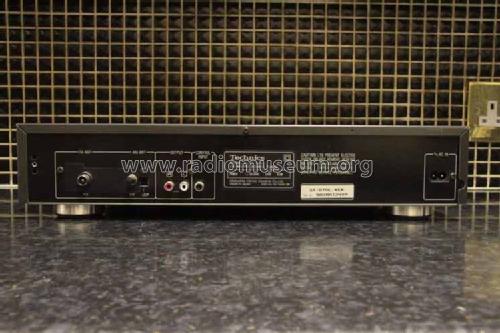

Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688912) Radio Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688913) Radio
Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688914) Radio Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688915) Radio
Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688916) Radio Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688917) Radio
Use red slider bar for more.
Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L; Technics brand (ID = 1688908) Radio
Technics brand: Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L [Radio] ID = 1688908 750x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1988 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Quartz Synthesizer LW/AM / FM Stereo Tuner ST-G70L - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 94 x 288 mm / 16.9 x 3.7 x 11.3 inch
Notes

Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Digital
FM Tuning Range: 87.9 to 107.9 MHz
MW Tuning Range: 530 to 1720 kHz
LW Tuning Range: 150 to 355kHz
Sensitivity: 1.9uV (FM), 20uV (MW)
Distortion: 0.02% (FM)
Selectivity: 30dB (FM), 50dB (MW)
Frequency response: 4Hz to 18kHz (FM)
Output: 600mV
Dimensions: 430 x 93.5 x 288mm
Weight: 3.5kg

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
