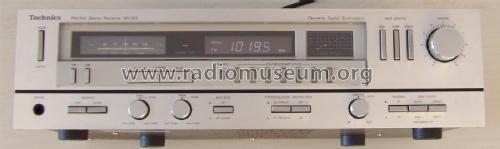

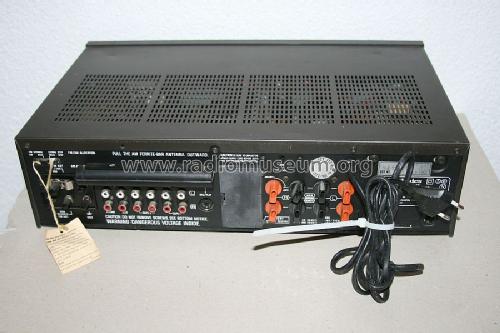

FM/AM Stereo Receiver SA-222 European version

Technics (brand)

  • Year
  • 1981–1983
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146072

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 45
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 & AA: 3 x 1,5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/AM Stereo Receiver SA-222 [European version] - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 120 x 300 mm / 16.9 x 4.7 x 11.8 inch
  • Notes
  • Stereo-Receiver mit 2 x 30 Watt Ausgangsleistung. Digital- und Analoganzeige der Empfangsfrequenz. 12 IC.

    3 x 1,5 V Batterien für Senderspeicher

  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Price in first year of sale
  • 280.00 $
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Siegfried Bauer. See "Data change" for further contributors.
