• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1976/1977

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 151834

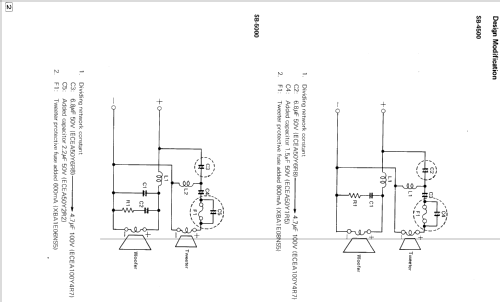

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: SB-5000 - Technics brand

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 350 x 717 x 323 mm / 13.8 x 28.2 x 12.7 inch

• Notes
• 2-Weg-Bassreflexbox mit 75 Watt Spitzenbelastbarkeit, 8 Ohm, 93,5 dB/W/m.
  40 - 20.000 Hz +/- 5dB.
  250mm Konus-TT, 60mm HT-Konus.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
