• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1982 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 191761

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

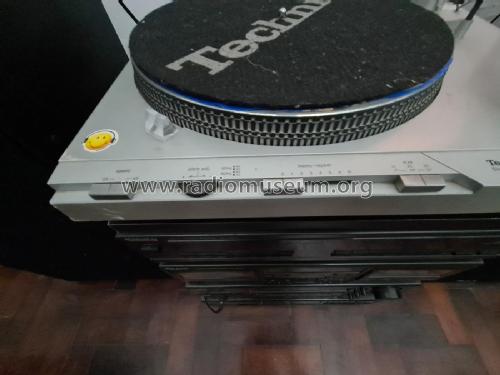

• Model: SL-D3 - Technics brand

• Dimensions (WHD)
• 430 x 150 x 360 mm / 16.9 x 5.9 x 14.2 inch

• Notes

• Direct Drive Automatic - Needle: Shure M75EJ / Type 2

  Memo-Repeat, 33/45 UpM, pitch-control, anti skating

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
