Stereo Cassette Deck RS-B405

Stereo Cassette Deck RS-B405; Technics brand (ID = 1081411) R-Player Stereo Cassette Deck RS-B405; Technics brand (ID = 1081413) R-Player
Stereo Cassette Deck RS-B405; Technics brand (ID = 1081445) R-Player Stereo Cassette Deck RS-B405; Technics brand (ID = 2098558) R-Player
Stereo Cassette Deck RS-B405; Technics brand (ID = 2098559) R-Player Stereo Cassette Deck RS-B405; Technics brand (ID = 2098560) R-Player
Stereo Cassette Deck RS-B405; Technics brand (ID = 2098561) R-Player Stereo Cassette Deck RS-B405; Technics brand (ID = 2098562) R-Player
Stereo Cassette Deck RS-B405; Technics brand (ID = 2098563) R-Player Stereo Cassette Deck RS-B405; Technics brand (ID = 2098564) R-Player
Use red slider bar for more.
Stereo Cassette Deck RS-B405; Technics brand (ID = 1081411) R-Player
Technics brand: Stereo Cassette Deck RS-B405 [R-Player] ID = 1081411 933x411
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck RS-B405, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1986/1987 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck RS-B405 - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 102 x 237 mm / 16.9 x 4 x 9.3 inch
Notes

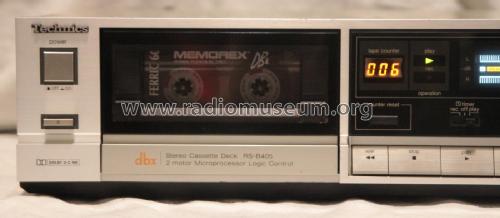

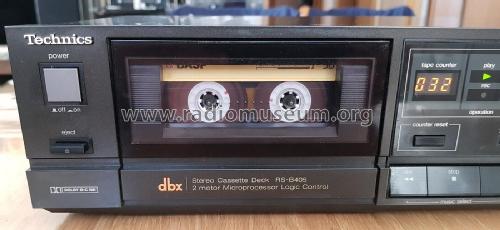

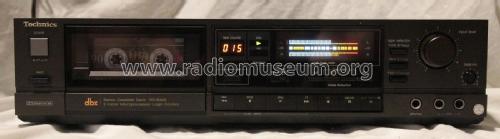

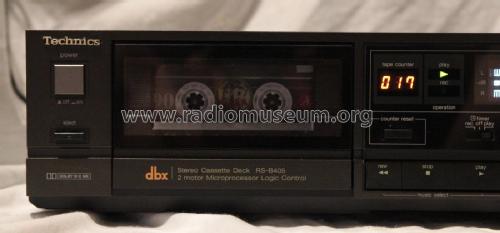

Technics RS-B405 is a frontloading 2-Head Stereo Cassette Deck with Dolby B + C, DBX Type II and Metal Tape Capability.

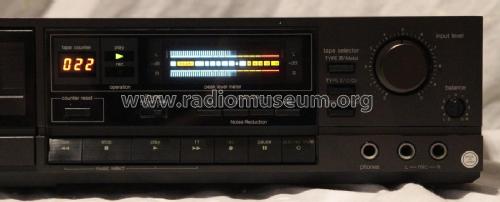

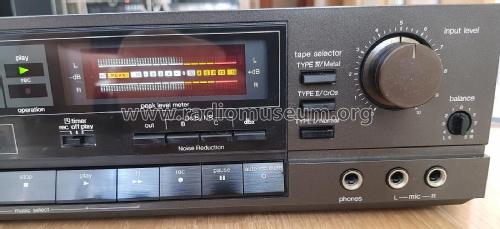

3-Digit Mechanical Counter, Digital Peak-Reading Meters, Multi Color Peak-Reading Meters, Record Indicator.
Record Level Balance and Master Record Level Control.
Microprocessor Logic Control System.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x capstan, 1 x reel
Tape Type: type I (Fe2O3), type II (CrO2), type IV (Metal)
Noise Reduction: Dolby B, C, DBX
Frequency Response: 30 Hz to 17 kHz  (Metal tape)
Signal to Noise Ratio: 92 dB  (DBX)
Wow and Flutter: 0.08% WMRS
Input: 60 mV (line), 0.25 mV (mic)
Output: 0.4 V (line)

Black version of this model coming as TECHNICS RS-B405-KEK

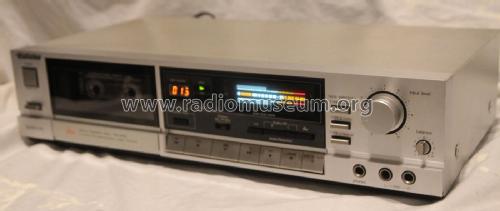

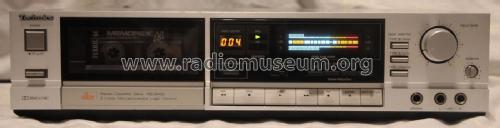

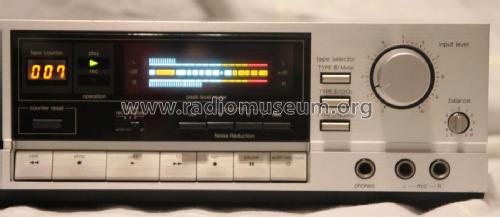

Silver version of this model coming as TECHNICS RS-B405-SEG

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
