Stereo Cassette Deck RS-M233X

Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102659) R-Player Stereo Cassette Deck RS-M233X; Technics brand (ID = 659907) R-Player
Stereo Cassette Deck RS-M233X; Technics brand (ID = 659908) R-Player Stereo Cassette Deck RS-M233X; Technics brand (ID = 669977) R-Player

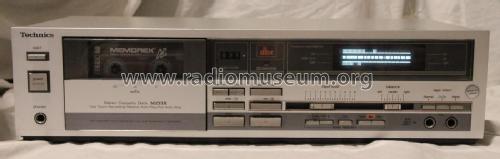

Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102656) R-Player Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102657) R-Player
Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102658) R-Player Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102660) R-Player
Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102661) R-Player Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102662) R-Player
Use red slider bar for more.
Stereo Cassette Deck RS-M233X; Technics brand (ID = 2102659) R-Player
Technics brand: Stereo Cassette Deck RS-M233X [R-Player] ID = 2102659 1400x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck RS-M233X, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1983/1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck RS-M233X - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 109 x 235 mm / 16.9 x 4.3 x 9.3 inch
Notes

Frontloading 2-Head Stereo Cassette Deck with Dolby B + C, DBX Type II and Metal Tape Capability.

3-Digit Mechanical Counter, Digital Peak-Reading Meters, Peak Hold.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C, DBX
Frequency Response: 20Hz to 19kHz  (Metal tape)
Signal to Noise Ratio: 92dB  (DBX)
Wow and Flutter: 0.048%
Input: 60mV (line), 0.25mV (mic)
Output: 0.4V (line)

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
