Stereo DC Power Amplifier SE-C01

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 289512

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo DC Power Amplifier SE-C01 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 297 x 49 x 262 mm / 11.7 x 1.9 x 10.3 inch
  • Notes

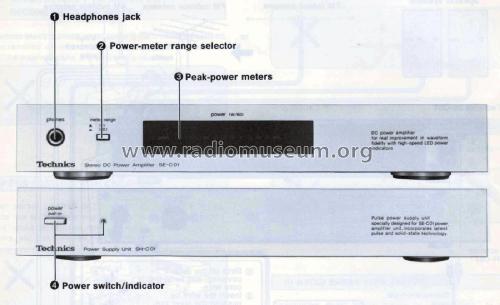

  • Stereo DC Power Amplifier Model Technics SE-C01.

    Power output: 50 watts per channel into 8Ω (stereo)

    Frequency response: 1Hz to 100kHz

    Total harmonic distortion: 0.03%

    Damping factor: 50

    Input sensitivity: 1V

    Signal to noise ratio: 105dB

    Speaker load impedance: 8Ω to 16Ω

    Power Consumption max. 360 Watt

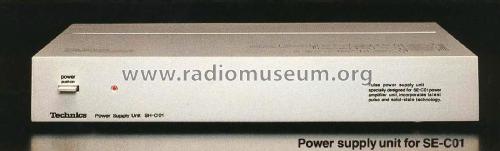

    Accessories: Technics SH-C01 power supply (3,6 kg, 297x49x220mm)

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Mentioned in
  • -- Original prospect or advert (Technics Sales Brochure)
  • Literature/Schematics (1)
  • Funkschau (21/1978, S. 1012)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
