Stereo Double Cassette Deck RS-B11W

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1986 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 258492

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 120 or 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material

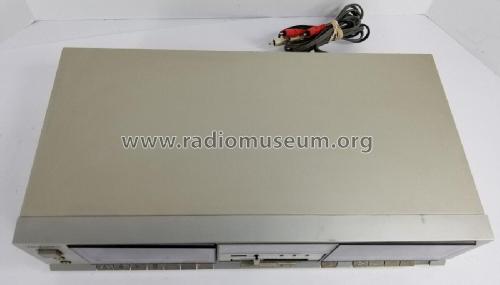

• Metal case

• from Radiomuseum.org
• Model: Stereo Double Cassette Deck RS-B11W - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 108 x 232 mm / 16.9 x 4.3 x 9.1 inch

• Notes

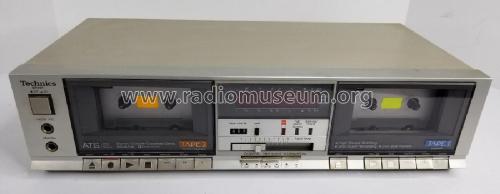

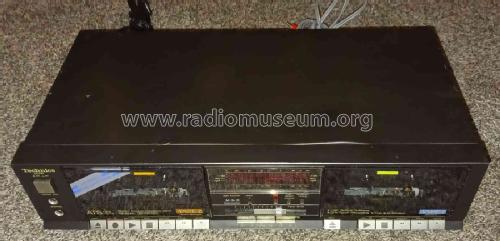

• Technics Frontloading Stereo Double Cassette Deck Model RS-B11W
  One Touch Recording, Cue and Review, Full Auto Stop
  DOLBY NR, High Speed Dubbing
  Metal Tape Capability
  3 Digit Analog Tape Counter

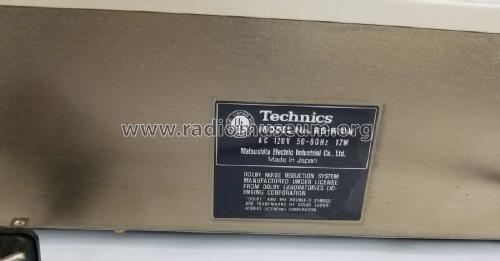

  Power Consumption 12 Watts.
  Made in Japan.


• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Produkt-Kataog 1984/85

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
