Stereo Graphic Equalizer SH-GE70

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1990

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 154836

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

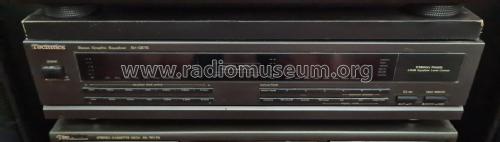

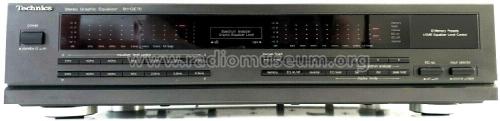

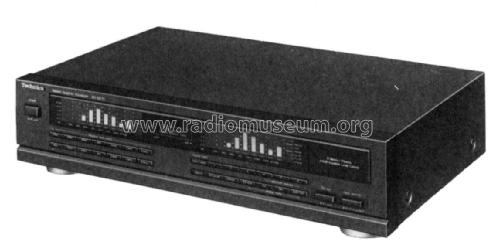

• Model: Stereo Graphic Equalizer SH-GE70 - Technics brand

• Shape
• Book-shelf unit.

• Notes
• Stereo Graphic Equalizer.
  2 channels, 7 Bands per channel +/- 12dB.

• Price in first year of sale
• 200.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
