Stereo Integrated Amplifier SU-V460

Technics (brand)

  • Year
  • 1989–1995
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 154721

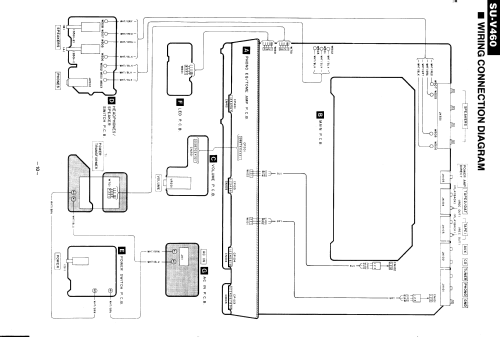

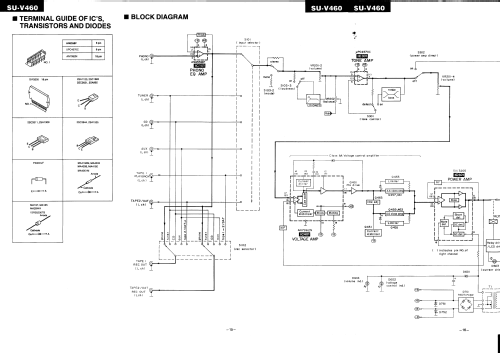

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier SU-V460 - Technics brand
  • Shape
  • Book-shelf unit.
  • Notes
  • Stereo Integrated Amplifier with 50 watts RMS per channel into 8 ohms.
    Class of Operation: AA.
  • Net weight (2.2 lb = 1 kg)
  • 7.990 kg / 17 lb 9.6 oz (17.599 lb)
  • Price in first year of sale
  • 299.00 $
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
