• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1975

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 161429

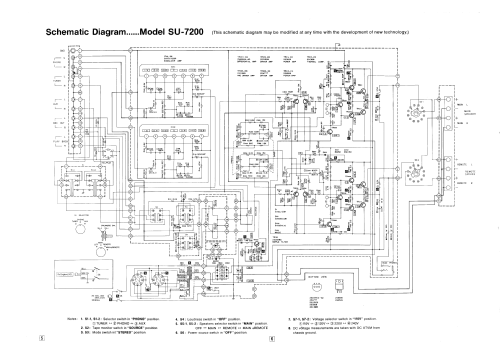

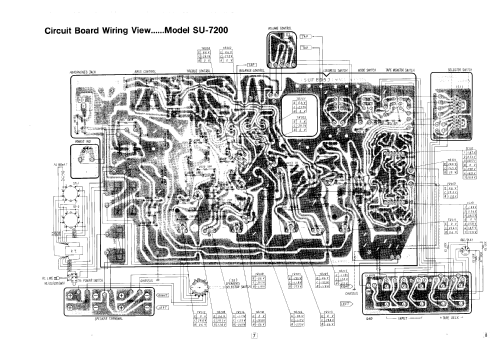

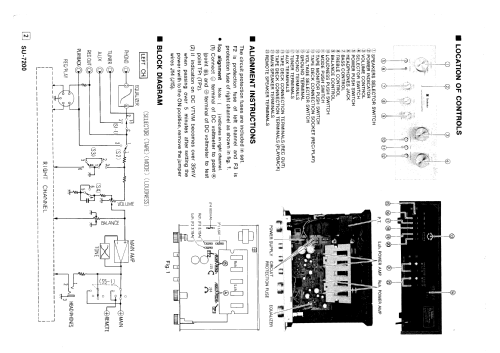

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50/60Hz, 110/120/220/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

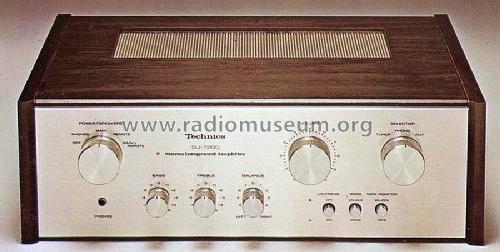

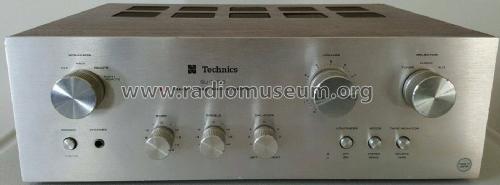

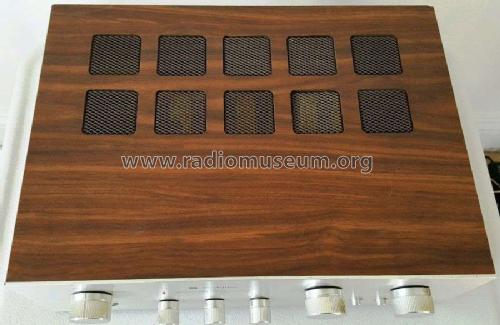

• Model: Stereo Integrated Amplifier SU-7200 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 410 x 140 x 332 mm / 16.1 x 5.5 x 13.1 inch

• Notes

• Technics Stereo Integrated Amplifier Model SU-7200.
  Power output: 20 Watts RMS per channel into 8Ω (stereo)
  Frequency response: 10Hz to 30kHz
  Total harmonic distortion: 0.8%
  Damping factor: 25
  Input sensitivity: 2mV (MM), 150mV (DIN), 150mV (line)
  Signal to noise ratio: 72dB (MM), 92dB (line)
  Output: 150mV (line), 30mV (DIN)
  Speaker load impedance: 4Ω to 16Ω
  Power Consumption 200 Watts

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 29,800.00 JPY

• Mentioned in

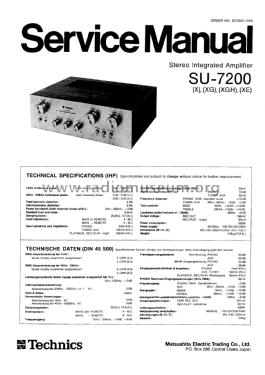

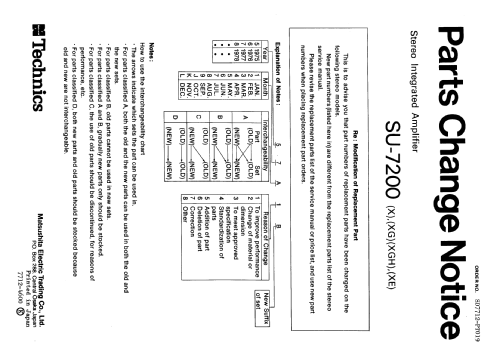

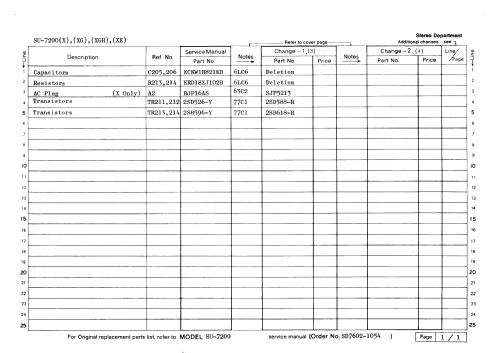

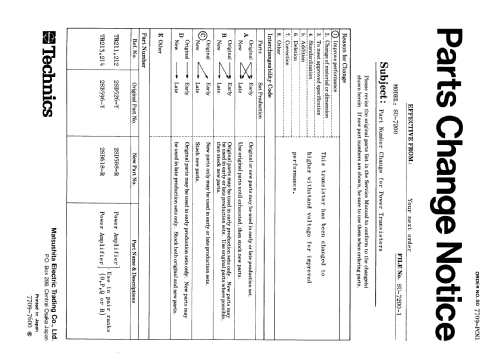

• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
