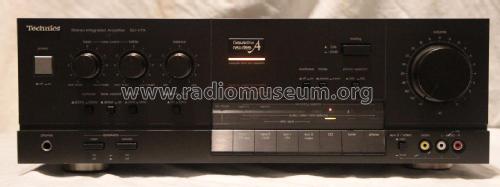

Stereo Integrated Amplifier SU-V7X

Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240209) Ampl/Mixer Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240206) Ampl/Mixer
Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240207) Ampl/Mixer Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240208) Ampl/Mixer
Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240210) Ampl/Mixer Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240211) Ampl/Mixer
Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240212) Ampl/Mixer
Use red slider bar for more.

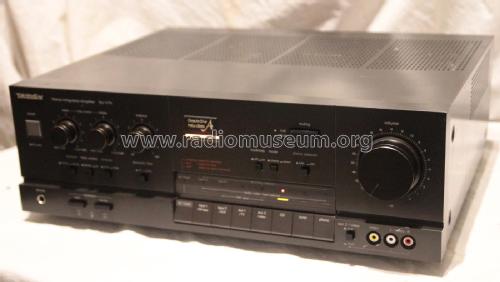

Stereo Integrated Amplifier SU-V7X; Technics brand (ID = 2240209) Ampl/Mixer
Technics brand: Stereo Integrated Amplifier SU-V7X [Ampl/Mixer] ID = 2240209 1400x790
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier SU-V7X, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1986–1988 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: Stereo Integrated Amplifier SU-V7X - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 147 x 392 mm / 16.9 x 5.8 x 15.4 inch
Notes

Stereo Integrated DC Amplifier with 100 watts RMS per channel into 8 ohms.
Class of Operation: NEW A.

Power output: 100 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.003%
Damping factor: 80
Input sensitivity: 0.17mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 72dB (MC), 78dB (MM), 93dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 580.00 $

Model page created by Franz Scharner. See "Data change" for further contributors.
