Stereo Integrated Amplifier SU-VX920

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1992
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 277048

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60Hz, 230/240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 220 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier SU-VX920 - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 158 x 429 mm / 16.9 x 6.2 x 16.9 inch
  • Notes

  • Technics Stereo Integrated Amplifier Model SU-VX920.
    Power output: 110 watts per channel into 8Ω (stereo)
    Frequency response: 3Hz to 100kHz
    Total harmonic distortion: 0.007%
    Damping factor: 80
    Input sensitivity: 0.25mV (MC), 2.5mV (MM), 150mV (line)
    Signal to noise ratio: 68dB (MC), 79dB (MM), 97dB (line)
    Channel separation: 50dB (line)
    Output: 150mV (line)
    Tone Controls:
    Bass 50Hz, +/-10dB
    Treble 20000Hz, +/-10dB
    Subsonic Filter 20Hz, -12dB/Oct.
    Loudness Control (Volume at -30dB) 50Hz, +9dB
    Speaker load impedance: 4Ω to 16Ω, A, B; A+B 8Ω to 16Ω
    Power Consumption 440 Watts

    Areas Suffix:
    EB - Great Britain
    EG - Europe
    GN - Oceania
    Colour:
    (K) - Black Type

  • Net weight (2.2 lb = 1 kg)
  • 16.5 kg / 36 lb 5.5 oz (36.344 lb)
  • Mentioned in

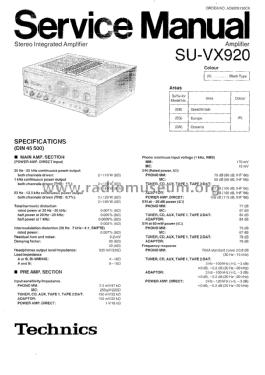

  • - - Manufacturers Literature (Service & Instruction Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
