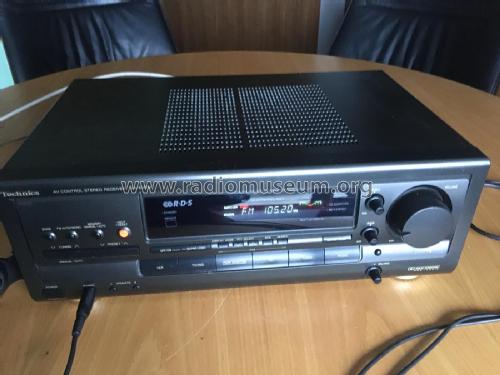

Stereo Receiver SA-EX510

Stereo Receiver SA-EX510; Technics brand (ID = 2457126) Radio Stereo Receiver SA-EX510; Technics brand (ID = 2457120) Radio
Stereo Receiver SA-EX510; Technics brand (ID = 2457119) Radio Stereo Receiver SA-EX510; Technics brand (ID = 2457122) Radio
Stereo Receiver SA-EX510; Technics brand (ID = 2457127) Radio Stereo Receiver SA-EX510; Technics brand (ID = 2457121) Radio
Stereo Receiver SA-EX510; Technics brand (ID = 2457125) Radio
Use red slider bar for more.
Stereo Receiver SA-EX510; Technics brand (ID = 2457126) Radio
Technics brand: Stereo Receiver SA-EX510 [Radio] ID = 2457126 1400x705
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver SA-EX510, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1999 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)

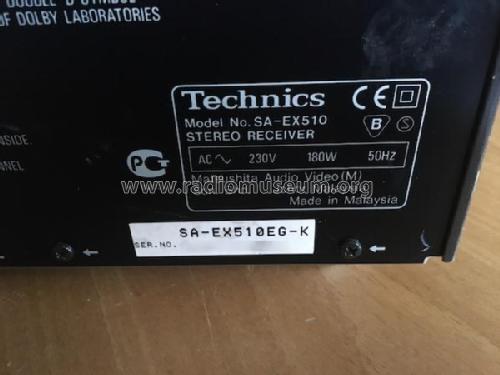

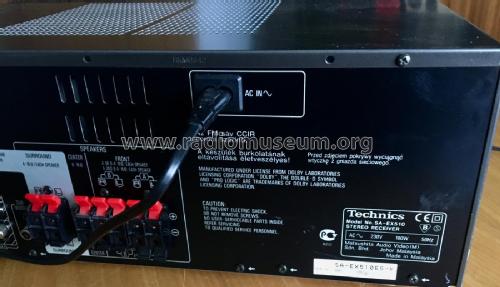

Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 500 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver SA-EX510 - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 158 x 324.5 mm / 16.9 x 6.2 x 12.8 inch
Notes
  • Dolby Surround ProLogic
  • Dolby 3 Stereo
  • Home Theater Modus (Vorne, Mitte, Hinten, Subwoofer): 5 x 100 W DIN Ausgangsleistung
  • Stereo Leistungsmodus: 2 x 100 W DIN Ausgangsleistung
  • 6-Kanal-Eingang bzw 5.1 für Dolby Digital oder DTS

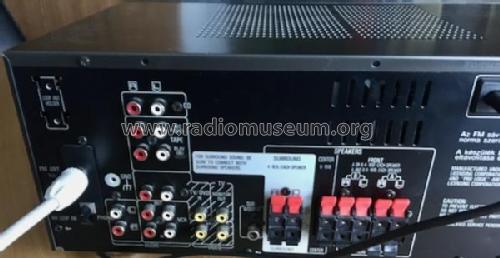

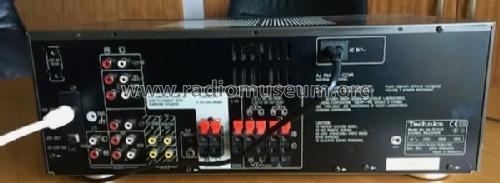

  • Anschlüsse für CD , Tape (In-Out) , TV , Phono , Video (In-Out)
  • Times 5 Konzept
  • Subwoofer Ausgang
  • RDS/Radiotext
  • Pegelgenerator/Testmodus
  • Verzögerungszeit schlatbar (15-30 ms)
  • Mittelkanalmodus (Wide/Normal/Phantom)
  • Anschlüsse Video/Audio: 3 und 4
  • Synthesizer Quarztuner
  • 30 Speicherplätze
  • Direktzugriff
  • Hilfe-Funktion
  • Gesamtklirrfaktor: 0,03 %
  • Class H Verstärker
  • Frequenzgang: + 3 dB (10Hz – 40 kHz)
  • Fremdspannungsbastand: 75 dB
  • UKW-Empfindlichkeit: 1,5 µV
  • UKW-Trennschärfe: 65 dB
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
