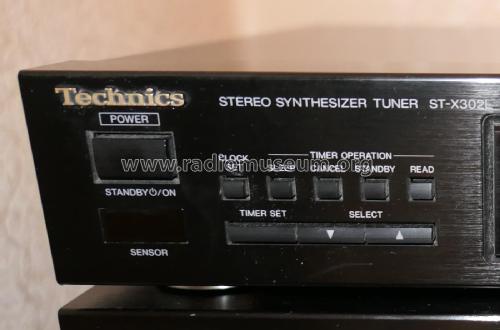

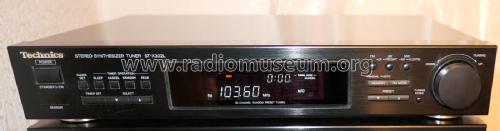

Stereo Synthesizer Tuner ST-X302L

Technics (brand)

Data
Forum
Pictures
Collections

  • Year
  • 1991–1994
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 286607

 Technical Specifications

  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60 Hz, 230-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Synthesizer Tuner ST-X302L - Technics brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 64.5 x 297 mm / 14.2 x 2.5 x 11.7 inch
  • Notes

  • Technics ST-X302L Stereo Synthesizer Tuner

    Specifications

    FM Tuner Section

    • Frequency range: 87.5-108 MHz (0.05 MHz steps)
    • Total harmonic distortion: Mono 0.15%, Stereo 0.3%
    • S/N: Mono 70 dB (78 dB, IHF), Stereo 65 dB (70 dB, IHF)
    • Frequency response: 20 Hz-15 kHz + 0.5 dB - 1.5 dB
    • Bandwidth: IF amplifier 180 kHz, FM demodulator 1000 kHz
    • Antenna terminals: 75 Ω (unbalanced)

    AM Tuner Section

    • Frequency range: MW 522 kHz-1611 kHz (9 kHz steps), 530 kHz-1620 kHz (10 kHz steps), LW 144 kHz-288 kHz (9 kHz steps), 146 kHz-290 kHz (+ 2 kHz shift)

    Timer Section

    • Clock: Quartz-lock type, 24-hour indication
    • Functions: 24-hour programmable, weekly (1 setting), once only (1 setting), sleep (at 1-120 min., 1 min. intervals)
    • Programmable content: Program source (FM, MW, LW, CD, Tape), Timer rec/timer play/power ON/OFF setting, Designation of preset station
    • Setting intervals: 1 minute-23 hours, 59 minutes (at 1-min. intervals)
    • Priority order: Sleep, once, weekly

    General

    • Output voltage: 0.3 V (0.6 V IHF)
    • Power consumption: 9 W (standby 6 W)

    See also Technics ST-X302LA variant.

  • Net weight (2.2 lb = 1 kg)
  • 2.3 kg / 5 lb 1.1 oz (5.066 lb)
  • Mentioned in
  • - - Manufacturers Literature (Operating Instructions RQT0992-B)
  • Author
  • Model page created by Ralf Meinke. See "Data change" for further contributors.
