Stereo Tuner Amplifier SA-EH60

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1997 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257798

• Picture

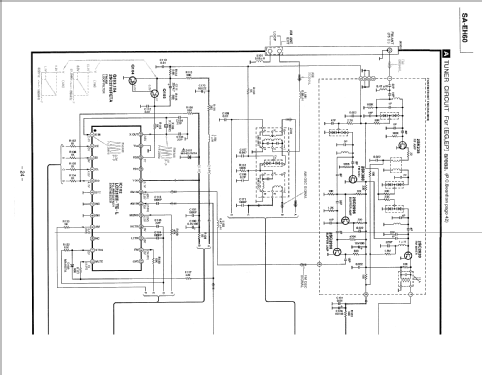

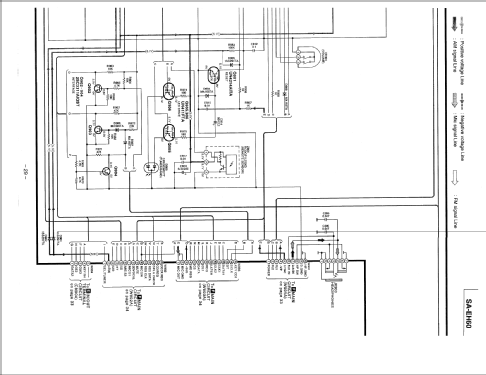

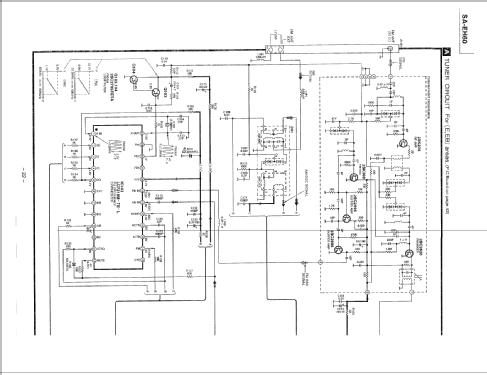

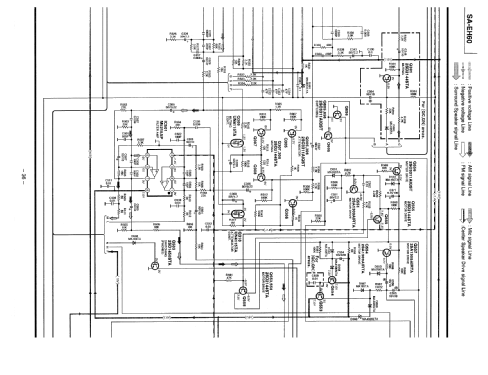

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tuner Amplifier SA-EH60 - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 287 x 118 x 300 mm / 11.3 x 4.6 x 11.8 inch

• Notes

• - Stereo Tuner Amplifier                                                                           - System 5.1: Main 2 x 70 W, Center 50 W and Surround 2x 50 W                   - Clock: quartz-lock type                                                                         - Inputs: Phono and Aux                                                                           - Hi-Fi Modular component set consisting also of: RS-EH60 (Stereo Casette Deck), SL-EH60 (Compact Disc) and SH-EH60 (Stereo Sound Processor)

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.

• Other Models

• Here you find 1065 models, 1027 with images and 178 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
