Stereo Integrated Amplifier SU-7100

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763019) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763020) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763021) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763022) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763023) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763024) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763025) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763026) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763027) Ampl/Mixer

Stereo Integrated Amplifier SU-7100; Technics brand (ID = 1763028) Ampl/Mixer
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305059) Ampl/Mixer Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305058) Ampl/Mixer
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305060) Ampl/Mixer Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305062) Ampl/Mixer
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305064) Ampl/Mixer Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2395705) Ampl/Mixer
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2395706) Ampl/Mixer Stereo Integrated Amplifier SU-7100; Technics brand (ID = 125694) Ampl/Mixer
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 125695) Ampl/Mixer Stereo Integrated Amplifier SU-7100; Technics brand (ID = 125696) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier SU-7100; Technics brand (ID = 2305059) Ampl/Mixer
Technics brand: Stereo Integrated Amplifier SU-7100 [Ampl/Mixer] ID = 2305059 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier SU-7100, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1978–1985 Category: Audio Amplifier or -mixer

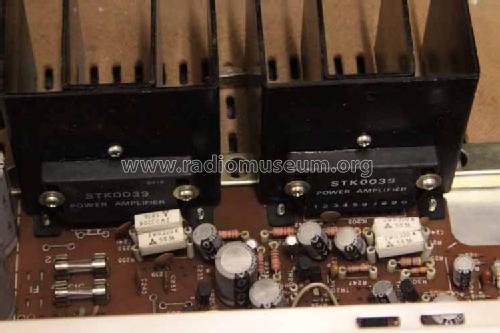

Semiconductors (the count is only for transistors) 11: 2SC1384 2SC1885 2SC1885 2SC1328 2SC1328 2SA798 2SA798 2SA902 2SA902 2SC1328 2SC1328 STK0039 STK0039
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 220/240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (unknown quality)
from Radiomuseum.org Model: Stereo Integrated Amplifier SU-7100 - Technics brand
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 410 x 140 x 310 mm / 16.1 x 5.5 x 12.2 inch
Notes

Stereo Integrated Amplifier with 35 WRMS per channel into 8 Ω. Class of Operation AB.

Power output: 35 W per channel into 8 Ω (stereo)
Frequency response: 20 Hz to 20 kHz
Total harmonic distortion: 0.1%
Damping factor: 40
Input sensitivity: 2.5 mV (MM), 150 mV (line)
Signal to noise ratio: 63 dB (MM), 83 dB (line)
Channel separation: 50 dB (line)
Output: 150 mV (line)
Speaker load impedance: 4 Ω to 16 Ω

Net weight (2.2 lb = 1 kg) 7.491 kg / 16 lb 8 oz (16.5 lb)
Price in first year of sale 170.00 $
Source of data -- Collector info (Sammler)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
