Stereo Integrated Amplifier SU-8080

Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631842) Ampl/Mixer Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631835) Ampl/Mixer
Stereo Integrated Amplifier SU-8080; Technics brand (ID = 295478) Ampl/Mixer Stereo Integrated Amplifier SU-8080; Technics brand (ID = 295477) Ampl/Mixer
Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631836) Ampl/Mixer Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631837) Ampl/Mixer
Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631838) Ampl/Mixer Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631839) Ampl/Mixer
Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631840) Ampl/Mixer Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631841) Ampl/Mixer
Use red slider bar for more.
Stereo Integrated Amplifier SU-8080; Technics brand (ID = 631842) Ampl/Mixer
Technics brand: Stereo Integrated Amplifier SU-8080 [Ampl/Mixer] ID = 631842 933x326
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Integrated Amplifier SU-8080, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details

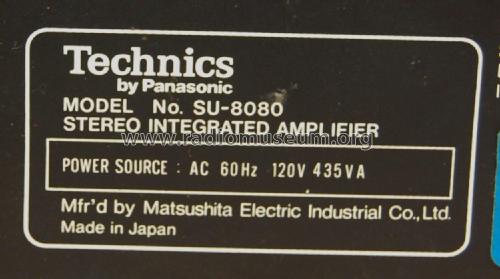

Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 144 W (unknown quality)
from Radiomuseum.org Model: Stereo Integrated Amplifier SU-8080 - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 138 x 350 mm / 17.7 x 5.4 x 13.8 inch
Notes Stereo Integrated Amplifier with 72 watts RMS per channel into 8 ohms.
Als Vor-Endstufe auftrennbar. Eingänge: Tuner, Aux, 2× Phono, 2× Tape. 4 Lautsprecheranschlüsse. Phono Impedance: 27kOhm/47kOhm (umschaltbar), max. Netzstromaufnahme 490Watt
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 460.00 $
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
