• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4702

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

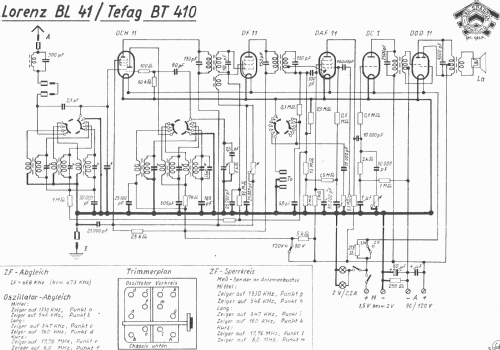

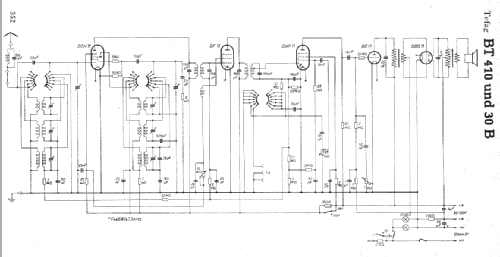

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DCH11 DF11 DAF11 DC11 DDD11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2; 5 & 90-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: BT410 - Tefag; Telephon

• Notes
• Ch= 30B.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Other Models

• Here you find 262 models, 180 with images and 108 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
