K134WSP

K134WSP; Tefag; Telephon (ID = 1094675) Radio

K134WSP; Tefag; Telephon (ID = 365574) Radio

K134WSP; Tefag; Telephon (ID = 7043) Radio
K134WSP; Tefag; Telephon (ID = 4031) Radio K134WSP; Tefag; Telephon (ID = 4032) Radio
K134WSP; Tefag; Telephon (ID = 4033) Radio K134WSP; Tefag; Telephon (ID = 129200) Radio
K134WSP; Tefag; Telephon (ID = 129201) Radio K134WSP; Tefag; Telephon (ID = 165156) Radio
K134WSP; Tefag; Telephon (ID = 1331273) Radio
Use red slider bar for more.
K134WSP; Tefag; Telephon (ID = 4031) Radio
Tefag; Telephon: K134WSP [Radio] ID = 4031 479x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model K134WSP, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1284 RENS1374d RGN1064
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: K134WSP - Tefag; Telephon
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 325 x 410 x 220 mm / 12.8 x 16.1 x 8.7 inch
Notes Baugleich mit Lorenz München K34W. Beide werden gemeinsam auf Schaltplänen geführt, was zu Missverständnissen Anlass geben kann.
Source of data Radiokatalog Band 1, Ernst Erb

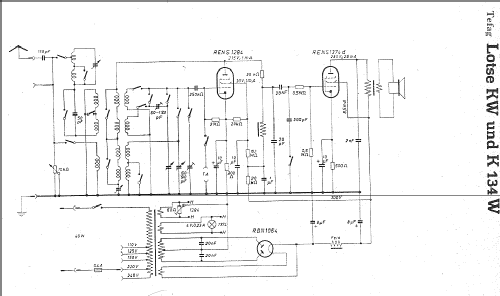

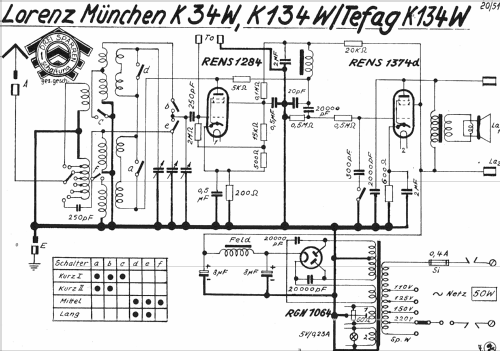

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
