Steilpult "Blech"

Steilpult 'Blech' ; Tefag; Telephon (ID = 66036) Radio
Use red slider bar for more.
Steilpult 'Blech' ; Tefag; Telephon (ID = 66036) Radio

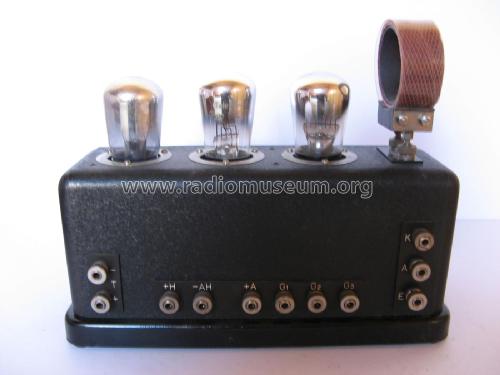

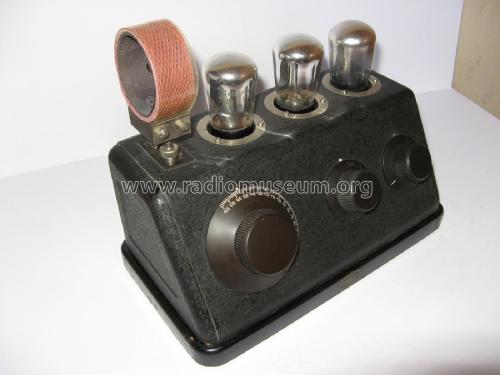

Tefag; Telephon: Steilpult "Blech" [Radio] ID = 66036 741x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Steilpult 'Blech', Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE064 RE054 RE154
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Steilpult "Blech" - Tefag; Telephon
Material Metal case, TUBES VISIBLE
Shape Tablemodel, slant panel.
Dimensions (WHD) 250 x 120 x 140 mm / 9.8 x 4.7 x 5.5 inch
Notes 2 Heizregler, 1 Steckspule.
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Karlheinz Schneider. See "Data change" for further contributors.
