Super 60/IIA

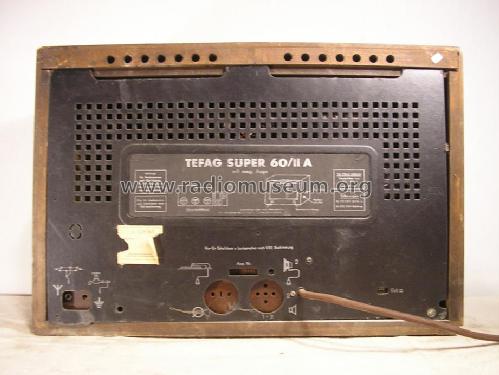

Super 60/IIA; Tefag; Telephon (ID = 1359331) Radio Super 60/IIA; Tefag; Telephon (ID = 1359333) Radio
Use red slider bar for more.
Super 60/IIA; Tefag; Telephon (ID = 1359331) Radio
Tefag; Telephon: Super 60/IIA [Radio] ID = 1359331 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 60/IIA, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH11 UBF11 UCL11 UY11 UM11 U1010P
Main principle Superheterodyne (common)
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Super 60/IIA - Tefag; Telephon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 506 x 345 x 245 mm / 19.9 x 13.6 x 9.6 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.
