Superior 42KW

Superior 42KW; Tefag; Telephon (ID = 1097475) Radio

Superior 42KW; Tefag; Telephon (ID = 365569) Radio

Superior 42KW; Tefag; Telephon (ID = 7134) Radio
Superior 42KW; Tefag; Telephon (ID = 62952) Radio Superior 42KW; Tefag; Telephon (ID = 62957) Radio
Superior 42KW; Tefag; Telephon (ID = 62955) Radio Superior 42KW; Tefag; Telephon (ID = 62954) Radio
Superior 42KW; Tefag; Telephon (ID = 62956) Radio Superior 42KW; Tefag; Telephon (ID = 805898) Radio
Superior 42KW; Tefag; Telephon (ID = 805899) Radio Superior 42KW; Tefag; Telephon (ID = 805900) Radio
Superior 42KW; Tefag; Telephon (ID = 805901) Radio Superior 42KW; Tefag; Telephon (ID = 805902) Radio
Use red slider bar for more.
Superior 42KW; Tefag; Telephon (ID = 62952) Radio

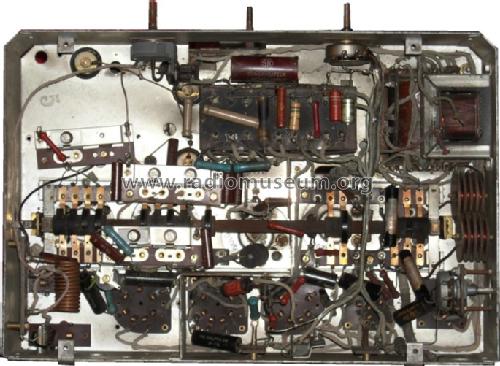

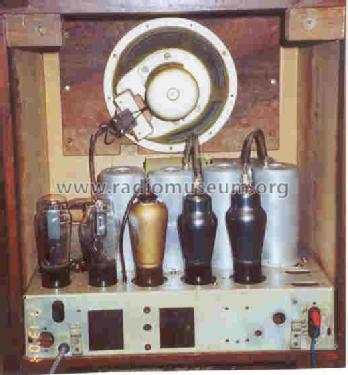

Tefag; Telephon: Superior 42KW [Radio] ID = 62952 488x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superior 42KW, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1234 RENS1234 RENS1254 RES964 RGN1064
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Superior 42KW - Tefag; Telephon
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Ch=33W
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
Here you find 255 models, 172 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
