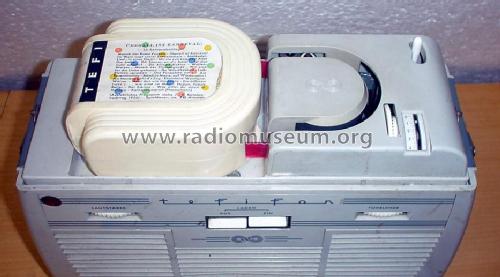

Tefifon Holiday BK-59/V

Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 224684) R-Player

Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 224685) R-Player
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 177026) R-Player Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 177027) R-Player
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 316677) R-Player Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 316678) R-Player
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 316679) R-Player Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 740424) R-Player
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 1272671) R-Player Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 1272767) R-Player
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 1272784) R-Player Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 1401554) R-Player
Use red slider bar for more.
Tefifon Holiday BK-59/V; Tefi-Apparatebau; (ID = 177026) R-Player
Tefi-Apparatebau;: Tefifon Holiday BK-59/V [R-Player] ID = 177026 790x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tefifon Holiday BK-59/V, Tefi-Apparatebau; Porz bei Köln

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1959/1960 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: GFT20 GFT21 GFT32 GFT32
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 110/220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Tefifon Holiday BK-59/V - Tefi-Apparatebau; Porz bei
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 225 x 300 x 118 mm / 8.9 x 11.8 x 4.6 inch
Notes Schallbandspieler (Dunker-Motor), zwei Tasten.
Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Price in first year of sale 198.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) Herbert Jüttemann, Das Tefifon


All listed radios etc. from Tefi-Apparatebau; Porz bei Köln
Here you find 111 models, 99 with images and 96 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
