Super-Ultra TRS46 UM4

Super-Ultra TRS46; Tefi-Apparatebau; (ID = 2116838) Radio

Super-Ultra TRS46; Tefi-Apparatebau; (ID = 2116839) Radio
Super-Ultra TRS46; Tefi-Apparatebau; (ID = 187850) Radio
Use red slider bar for more.

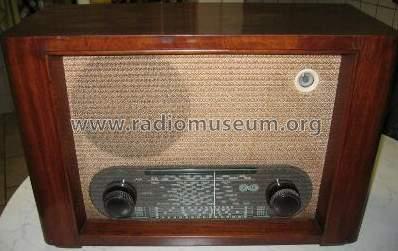

Super-Ultra TRS46; Tefi-Apparatebau; (ID = 187850) Radio
Tefi-Apparatebau;: Super-Ultra TRS46 [Radio] ID = 187850 398x251
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Ultra TRS46 UM4, Tefi-Apparatebau; Porz bei Köln:
eBay-VK: maxiphon

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UL41 UY41 UM4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Super-Ultra TRS46 [UM4] - Tefi-Apparatebau; Porz bei
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 350 x 240 mm / 21.7 x 13.8 x 9.4 inch
Notes Permeabilitätsabstimmung; vier KW-Bänder; auch ohne UM4.
Literature/Schematics (1) Tefifon, Das; Herbert Jüttemann

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
