Herzog II W (2WL)

Herzog II W ; TeKaDe TKD, (ID = 37691) Radio

Herzog II W ; TeKaDe TKD, (ID = 37692) Radio

Herzog II W ; TeKaDe TKD, (ID = 7180) Radio
Herzog II W ; TeKaDe TKD, (ID = 234100) Radio Herzog II W ; TeKaDe TKD, (ID = 234101) Radio
Herzog II W ; TeKaDe TKD, (ID = 234102) Radio
Use red slider bar for more.
Herzog II W ; TeKaDe TKD, (ID = 234100) Radio

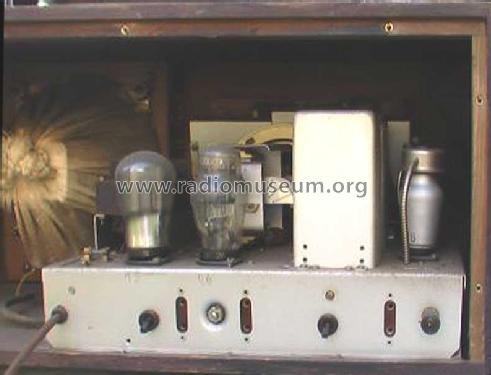

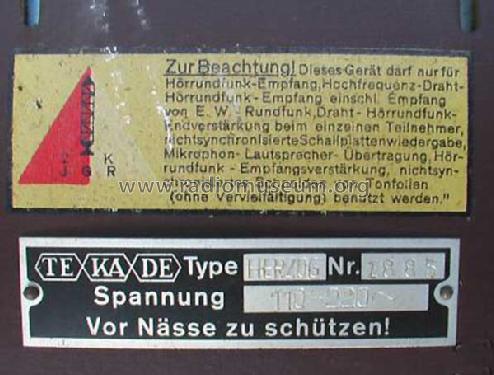

TeKaDe TKD,: Herzog II W [Radio] ID = 234100 800x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model Herzog II W (2WL), TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg:
Ebay Nr. 150004065318 Bild bearbeitet.

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1936–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF3 AF7 AL1 AZ1
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Herzog II W - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 625 x 290 x 270 mm / 24.6 x 11.4 x 10.6 inch
Notes Sperkreis für LW und MW eingebaut.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 240.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Preisl. Otto Gruoner 1937


All listed radios etc. from TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
Here you find 222 models, 189 with images and 92 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
