Delaying Time Base 7B15

Delaying Time Base 7B15; Tektronix Guernsey (ID = 2579967) Equipment
Delaying Time Base 7B15; Tektronix Guernsey (ID = 2518201) Equipment Delaying Time Base 7B15; Tektronix Guernsey (ID = 2518202) Equipment
Delaying Time Base 7B15; Tektronix Guernsey (ID = 2518203) Equipment
Use red slider bar for more.

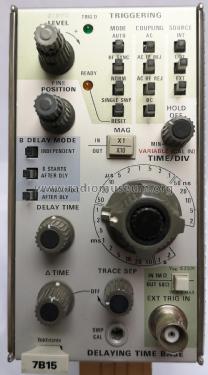

Delaying Time Base 7B15; Tektronix Guernsey (ID = 2518201) Equipment
Tektronix Guernsey: Delaying Time Base 7B15 [Equipment] ID = 2518201 1166x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Delaying Time Base 7B15, Tektronix Guernsey Ltd. ; St.Peter Port

Country:  Guernsey
Manufacturer / Brand:  Tektronix Guernsey Ltd. ; St.Peter Port
Year: 1978–1990 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Delaying Time Base 7B15 - Tektronix Guernsey Ltd. ; St.
Material Metal case
Shape Chassis only or for «building in»
Notes

The Tektronix 7B15 is a 1 GHz delaying time base for 7000-series scopes, in particular, the 1 GHz 7104 (typically used with 7A29 vertical amplifiers and a 7B10 delayed time base).

The 7B15 provides digital readout of delay and delta times. In effect, the 7B15/7B10 pair are speed-improved versions of the 7B85/7B80.

Specifications

Sweep200 ms/Div to 2 ns/Div in 1-2-5 sequence, ×10 magnifier down to 200 ps/Div, variable to ×2.5
Triggeringto 1 GHz
Jitterless than 30 ps at 1 GHz
Features
  • Digital read-out of delay and delta times
  • Variable Trigger Holdoff
  • HF Sync mode

Internals

A ramp generator is started when the trigger signal arrives. The delayed sweep is started when a comparator detects that the ramp has reached a control voltage, set by the front panel knobs. The control voltage is therefore proportional to the amount of delay and is measured using a 155-0185-00 4-digit DVM circuit, then displayed on the oscilloscope readout. The display, scaled in seconds, provides the operator with a precise readout of the delay.

Other custom Tek ICs used: 155-0150-00 trigger detector, 155-0160-00 trigger amplifier.

The 7B15 uses the +50 V supply provided by the mainframe.

Price in first year of sale 6'851.00 CHF
Mentioned in -- Original-techn. papers. (Product & Preislist 1987)
Literature/Schematics (1) - - Manufacturers Literature (7B15 Operator's Instruction Manual First print Oct 1978, revised Oct 1983)

Model page created by Detlef Boeder. See "Data change" for further contributors.
