Time Base 7B10

Time Base 7B10; Tektronix Guernsey (ID = 2579968) Equipment
Time Base 7B10; Tektronix Guernsey (ID = 2518456) Equipment Time Base 7B10; Tektronix Guernsey (ID = 2518457) Equipment
Time Base 7B10; Tektronix Guernsey (ID = 2518458) Equipment
Use red slider bar for more.

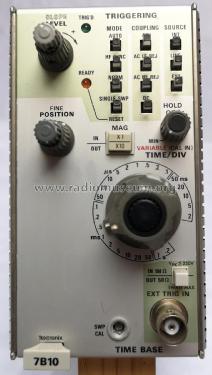

Time Base 7B10; Tektronix Guernsey (ID = 2518456) Equipment
Tektronix Guernsey: Time Base 7B10 [Equipment] ID = 2518456 1190x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Time Base 7B10, Tektronix Guernsey Ltd. ; St.Peter Port

Country:  Guernsey
Manufacturer / Brand:  Tektronix Guernsey Ltd. ; St.Peter Port
Year: 1978–1990 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Time Base 7B10 - Tektronix Guernsey Ltd. ; St.
Material Metal case
Shape Chassis only or for «building in»
Notes

The Tektronix 7B10 is a 1 GHz time base for 7000-series scopes, in particular, the 1 GHz 7104 (typically used with 7A29 vertical amplifiers and a 7B15 delaying time base).

In effect, the 7B15/7B10 pair are improved-speed versions of the 7B85/7B80.

Specifications

Sweep200 ms/Div to 2 ns/Div in 1-2-5 sequence, ×10 magnifier down to 200 ps/Div, variable to ×2.5
Excluded portions of sweepNone in 7104/R7103, first 5 ns in 78xx, 79xx mainframes
Trigger sensitivity0.5 Div (int) or 50 mV (ext) up to 250 MHz, 1.5 Div or 150 mV from 250 MHz to 1 GHz; HF SYNC mode: 0.3 Div or 75 mV, 250 MHz to 1 GHz
Trigger couplingDC, AC (>30 Hz), AC HF REJ (30 Hz to 30 kHz), AC LF REJ (>50 kHz)
Trigger input50 Ω, max. 1 W average or 1 MΩ // 20 pF, max. 250 V DC+peak AC
Jitterless than 30 ps at 1 GHz
Features
  • Variable Trigger Holdoff
  • HF Sync mode

Internals

The trigger amplifier and switch function is performed by a 155-0160-00. The trigger is the 155-0150-00. Sweep control and lockout is performed by a 155-0149-00 or 155-0049-02.

Power from the mainframe.

Price in first year of sale 6'036.00 CHF
Mentioned in -- Original prospect or advert (Tektronix products & prices 1987)
Literature/Schematics (1) - - Manufacturers Literature (7B10 Operator's Instruction manual First Print Sep 1978 revised June 1985)

Model page created by Detlef Boeder. See "Data change" for further contributors.
