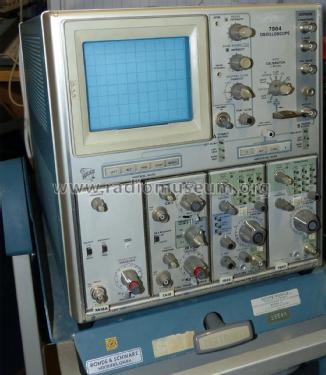

500 MHz Oscilloscope 7904

500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2593435) Equipment 500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2288119) Equipment
500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 1402528) Equipment 500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2149899) Equipment

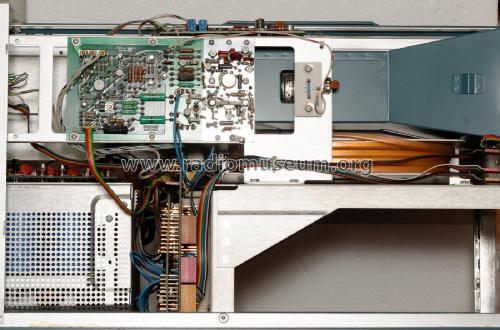

500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2288121) Equipment 500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2288122) Equipment
Use red slider bar for more.
500 MHz Oscilloscope 7904; Tektronix; Portland, (ID = 2593435) Equipment
Tektronix; Portland,: 500 MHz Oscilloscope 7904 [Equipment] ID = 2593435 1400x1491
Select picture or schematic to display from thumbnails on the right and click for download.
For model 500 MHz Oscilloscope 7904, Tektronix; Portland, OR:
MY 500 MHz Tektronix 7904

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1974 Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 90-132; 180-264 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: 500 MHz Oscilloscope 7904 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 305 x 342 x 590 mm / 12 x 13.5 x 23.2 inch
Notes

The 7904 and the 5¼ rackmount R7903 are the widest-realtime-bandwidth, geral-purpose oscilloscopes available today.

Vertical System
Channels: Two left-hand plug-in compartments, compatible with all 7000-Series plug-ins. Bandwidth determined by mainframe and plug-in unit.
LEFT,ALT,ADD CHOP or RIGHT Mode, Chopped  Mode Repetiton rate 1MHz


Horizontal System
Singel channel: Right-hand plug-in compartment compatible with Time Base 7B70 and 7B90 sequences. 7000-Series Vertical Amplifiers and Specialized plug-ins may alse be used.

Fastest Calibrated Sweep Rate: 500pS/div with the 7B92

Deflection  Accuracy: Less than 1% difference  between compartments.
DC Linearity: 0.1 div  or less  error  at each  graticule line after adjusting for  no  error at the second and tenth  graticule lines.

Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 3'400.00 USD
Source of data - - Manufacturers Literature

Model page created by Pius Steiner. See "Data change" for further contributors.
