• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63228

• • alternative name: Teletone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 156 Ch= U [battery operated] - Tele-Tone Radio Corp., Tele-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 7 x 4 inch / 254 x 178 x 102 mm

• Notes

• There are three models that are versions of the Tele-Tone 156. The schematics are very similar with many of same part numbers (the D3810 adds AC to DC circuitry). The plastic cases are physically identical with the only differences being (1) an engraved name change from "TELE-TONE" to "TRUETONE", (2) a color change to the D3810 case, and (3) knob color changes. Tele-Tone may have been the "private label" manufacturer to Western Auto for these Truetone models.

  Brand	Model	Power supply
  Tele-Tone	156	Battery
  Truetone	D3809	Battery
  Truetone	D3810	AC/DC or Battery

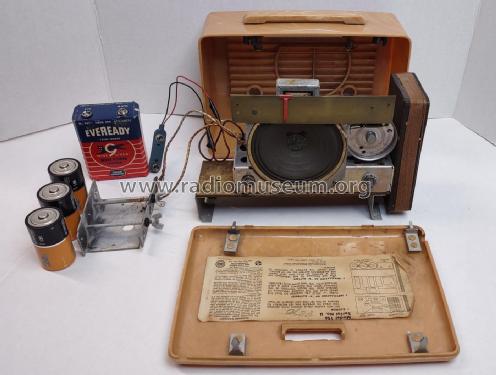

  "A" battery (tube filament) is 1.5V with 3 D cells in parallel placed in the steel angle battery holder. Power input is approximately 1.5V @ 0.28A and 64.4V @ 7.93mA (seven 9V Alkaline batteries in series). Weight listed includes batteries; weight is 4.1 lbs without batteries.

• Net weight (2.2 lb = 1 kg)
• 5.8 lb (5 lb 12.8 oz) / 2.633 kg

• Price in first year of sale
• 17.95 USD

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 298.)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (October, 1947, page 27)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 35, Date 3/48, Folder 485-23)

• Other Models

• Here you find 165 models, 77 with images and 124 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
