• Country
• United States of America (USA)

• Manufacturer / Brand
• Telechron, Inc.; Ashland (MA)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63170

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Musalarm 8H67 - Telechron, Inc.; Ashland MA

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 11.3 x 6.4 x 6 inch / 287 x 163 x 152 mm

• Notes

• Color=Fawn An almost identical set with the same model number 8H67 was made in Canada by Canadian General Electric Co. Limited (C.G.E.)

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in

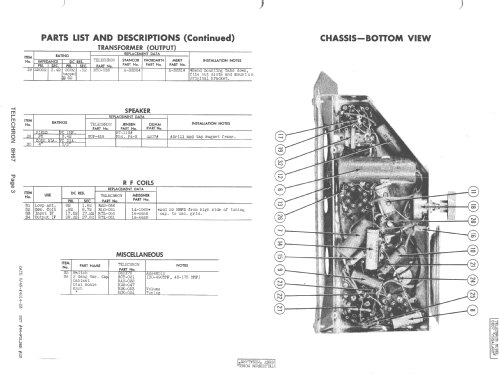

• Photofact Folder, Howard W. SAMS (Vol.5 8/48 4814-23 Set 44 Folder 23)

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 355.)
