Corona ; Telefongyar, Terta (ID = 1446483) Radio

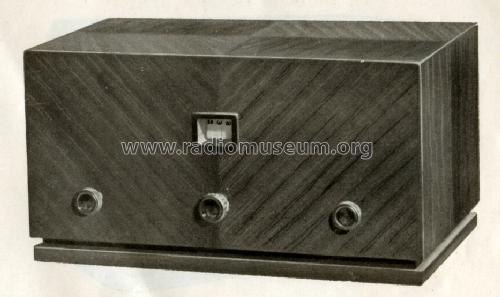

Telefongyar, Terta: Corona [Radio] ID = 1446483 933x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model Corona, Telefongyar, Terta (TRT); Budapest:
Thanks for Mr.Gyulai Ferenc, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Telefongyar, Terta (TRT); Budapest
Brand

Terta, TRT
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AG4100 AR4100 AS4100 P430 PV475
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105; 125; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Corona - Telefongyar, Terta TRT;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 385 x 190 x 210 mm / 15.2 x 7.5 x 8.3 inch
Notes

The datasheet lists a tube AS411 in place of AS4100, which might be a misprint.

Price in first year of sale 380.00 Pengö

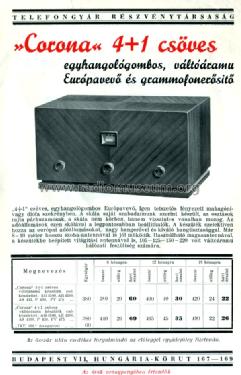

Mentioned in -- Original prospect or advert (Barta és Társa Árjegyzék - BAPO 39, Bp. 1931.)
Literature/Schematics (1) Barta és Társa. Rádió árjegyzék, 1932
Literature/Schematics (3) Rádióamatőr 1931. szeptember.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Telefongyar, Terta (TRT); Budapest
Here you find 209 models, 197 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
