131G (T131)G

131G G; Telefunken (ID = 7552) Radio

131G G; Telefunken (ID = 19923) Radio
Use red slider bar for more.

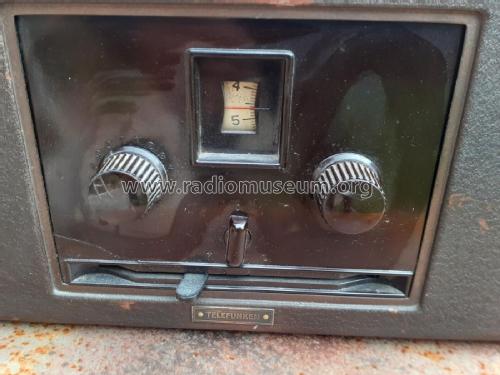

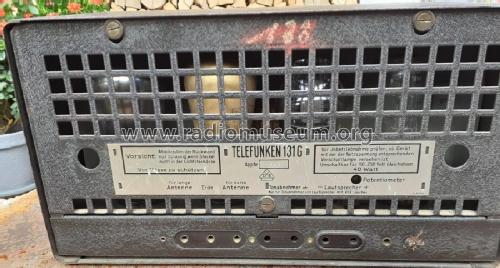

131G G; Telefunken (ID = 7552) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN1821 REN1821 RENS1823d or REN1822 EUI
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 131G G - Telefunken Deutschland TFK,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 317 x 175 x 200 mm / 12.5 x 6.9 x 7.9 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 156.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen
