31W

31W; Telefunken; Wien (ID = 980182) Radio

31W; Telefunken; Wien (ID = 1116044) Radio
31W; Telefunken; Wien (ID = 1219716) Radio 31W; Telefunken; Wien (ID = 811538) Radio
31W; Telefunken; Wien (ID = 10229) Radio 31W; Telefunken; Wien (ID = 1235137) Radio
31W; Telefunken; Wien (ID = 1235138) Radio 31W; Telefunken; Wien (ID = 1365479) Radio
31W; Telefunken; Wien (ID = 1365481) Radio 31W; Telefunken; Wien (ID = 1365482) Radio
31W; Telefunken; Wien (ID = 1365483) Radio 31W; Telefunken; Wien (ID = 1365485) Radio
Use red slider bar for more.
31W; Telefunken; Wien (ID = 1219716) Radio
Telefunken; Wien: 31W [Radio] ID = 1219716 865x933

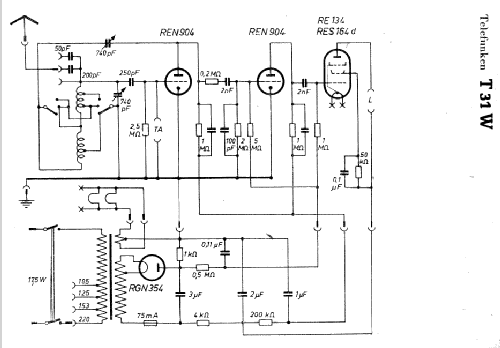

Select picture or schematic to display from thumbnails on the right and click for download.
For model 31W, Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1929–1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN1004 REN1004 RE134 or RES164 RE134
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 31W - Telefunken; Wien
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 200 x 190 mm / 9.4 x 7.9 x 7.5 inch
Notes siehe Inserat.
Price in first year of sale 375.00 öS
Mentioned in Radiowelt, Wien (RW, 51) (Werbeschaltung 1930 "Österreichische Werkmannsarbeit")

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
