339V
Use red slider bar for more.
Telefunken; Budapest: 339V [Radio] ID = 133668 270x206
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1938–1940 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

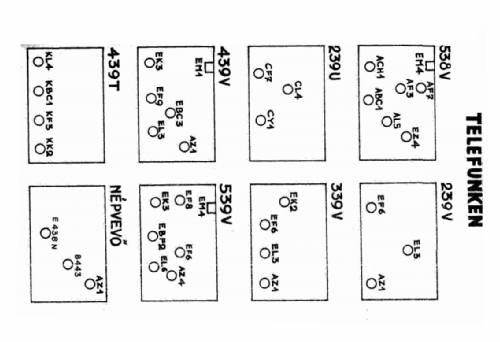

| Valves / Tubes | 4: EK2 EF6 EL3 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 472 kHz |
|---|---|
| Tuned circuits | 4 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | -Loudspeaker incorporated, but system not known. |
| Power out | |
| from Radiomuseum.org | Model: 339V - Telefunken; Budapest |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 630 x 330 x 280 mm / 24.8 x 13 x 11 inch |
| Price in first year of sale | 280.00 Pengö |
| External source of data | Ungarische Schaltungssammlung |
| Mentioned in | Rádiókészülékek Kapcsolásai 1936-56 |
| Literature/Schematics (1) | Telefunken 1939. |
Model page created by Folkert Rothe. See "Data change" for further contributors.
