343G (T343G)
Use red slider bar for more.

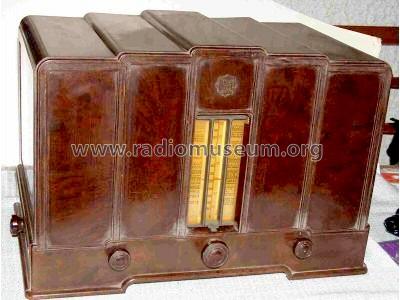

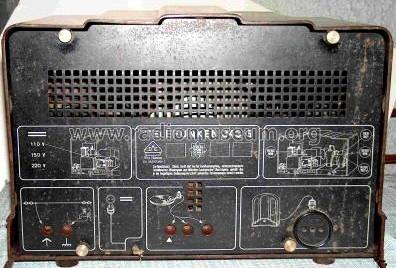

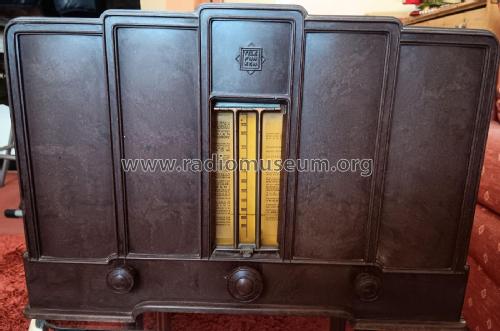

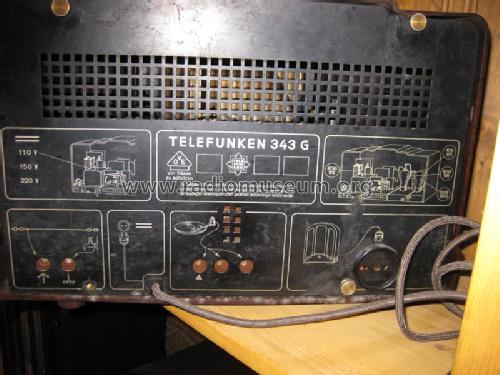

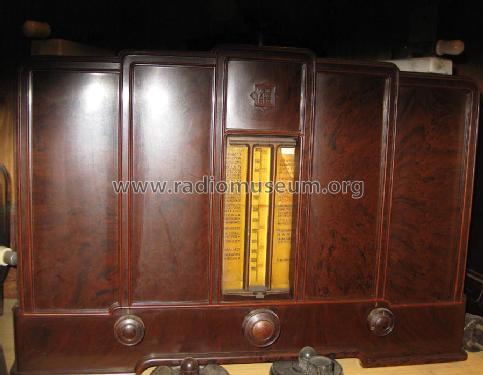

Telefunken: 343G [Radio] ID = 49971 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
|
|

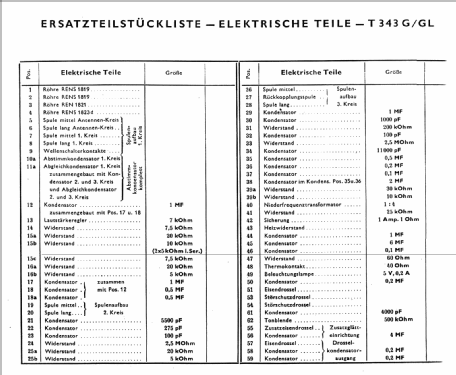

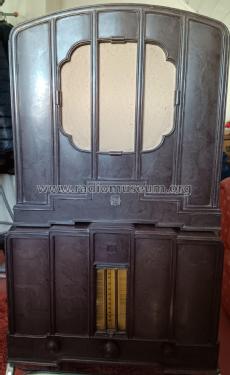

||||
| Year: 1932/1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: RENS1819 RENS1819 REN1821 RENS1823d |
|---|
| Main principle | TRF without regeneration; 2 Special; 1 AF stage(s) |
|---|---|
| Tuned circuits | 3 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) / 110-220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: 343G - Telefunken Deutschland TFK, |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 410 x 290 x 250 mm / 16.1 x 11.4 x 9.8 inch |
| Notes | Siehe auch 343GL mit eingebautem Lautsprecher. Siehe auch Paralleltype Siemens 46G in anderem Gehäuse. |
| Price in first year of sale | 258.00 RM ! |
| Source of data | Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange + FS-Bestückungstabellen |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
