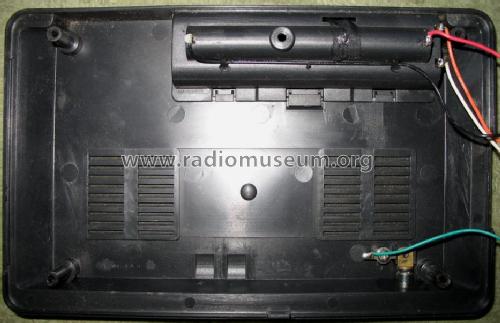

4 Band Portable Radio RP 550 PLL; Telefunken (ID = 658399) Radio 4 Band Portable Radio RP 550 PLL; Telefunken (ID = 658400) Radio
4 Band Portable Radio RP 550 PLL; Telefunken (ID = 658402) Radio 4 Band Portable Radio RP 550 PLL; Telefunken (ID = 658403) Radio
4 Band Portable Radio RP 550 PLL; Telefunken (ID = 658404) Radio 4 Band Portable Radio RP 550 PLL; Telefunken (ID = 1624525) Radio
Use red slider bar for more.

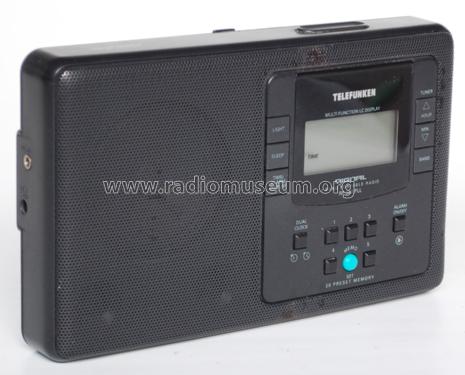

4 Band Portable Radio RP 550 PLL; Telefunken (ID = 1624526) Radio
Telefunken: 4 Band Portable Radio RP 550 PLL [Radio] ID = 1624526 933x751
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Portable Radio RP 550 PLL, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4 Band Portable Radio RP 550 PLL - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 211 x 130 x 45 mm / 8.3 x 5.1 x 1.8 inch
Notes Kurzwelle: 5,95-15,6 MHz. 4 × 5 Program. Pufferbatterie für Uhr: 2 × 1,5 Volt, AAA battery. Netzgerät: DC 6 V. Made in China.
Net weight (2.2 lb = 1 kg) 0.610 kg / 1 lb 5.5 oz (1.344 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
