557

557; Telefunken Italia, (ID = 53943) Radio

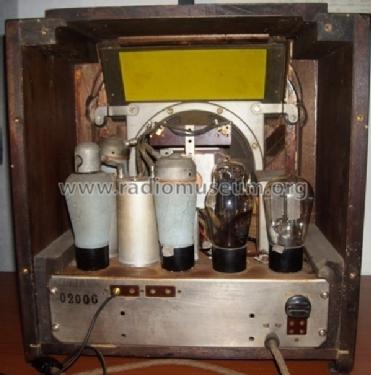

557; Telefunken Italia, (ID = 1245932) Radio 557; Telefunken Italia, (ID = 1245941) Radio
557; Telefunken Italia, (ID = 1246342) Radio
Use red slider bar for more.
557; Telefunken Italia, (ID = 1245932) Radio
Telefunken Italia,: 557 [Radio] ID = 1245932 480x516
Select picture or schematic to display from thumbnails on the right and click for download.
For model 557, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 RENS1294 REN924 RES964 RGN1064
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 557 - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Controllo di tono on/off. Ingresso Fono.

Price in first year of sale 800.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
