- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1938/1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30766

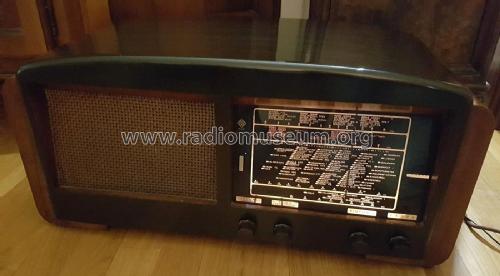

from my collection
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 469 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch
- Power out
- 4.3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

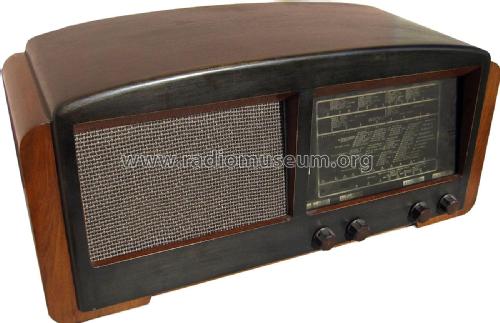

- Model: 569 - Telefunken Italia, Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 680 x 320 x 290 mm / 26.8 x 12.6 x 11.4 inch
- Notes
- Meter Indicatore di sintonia a ombra (Galvanometro con illuninazione posteriore )Particolari indicazioni sui comandi di regolazione di volume e su regolazione tono (fono) o selettività (radio) evidenziati sulla foto della scala parlante. La variazione di selettività è effettuata meccanicamente regolando l'accoppiamento primario/secondario delle medie frequenze.
- Source of data
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
