For model 576, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 RENS1294 REN924 RES964 RGN1064
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 576 - Telefunken Italia, Milano

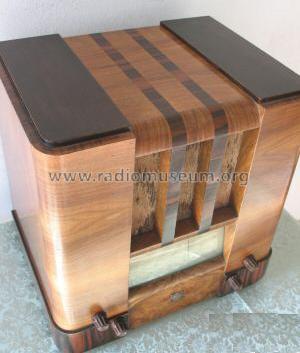

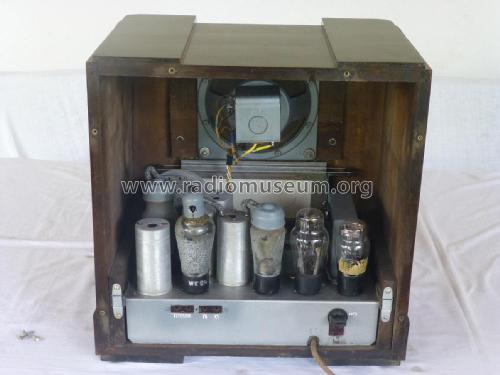

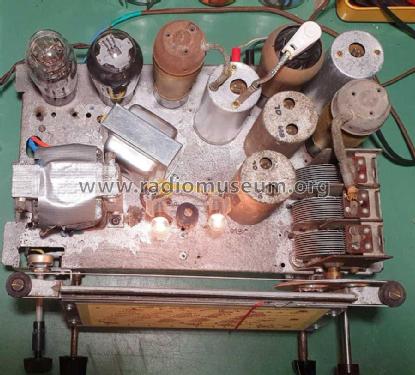

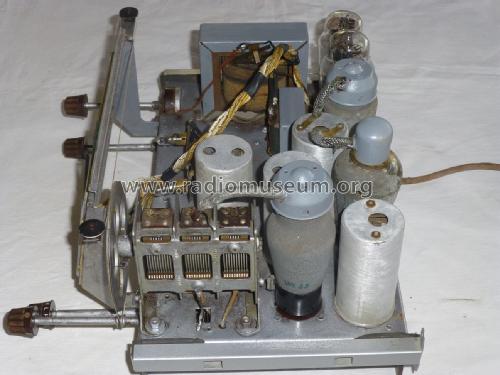

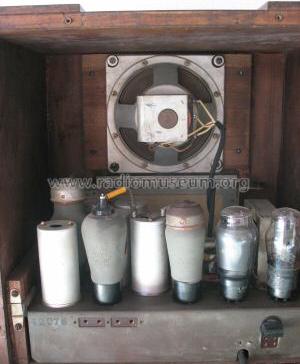

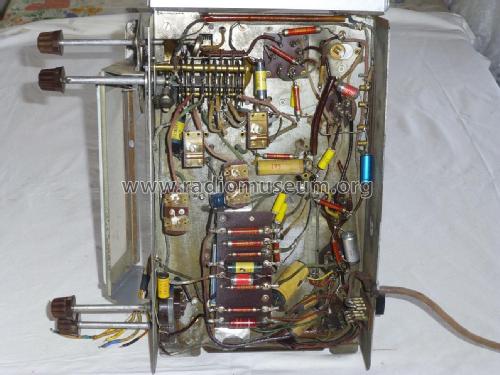

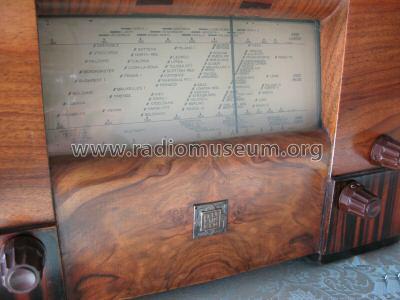

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 410 x 410 x 300 mm / 16.1 x 16.1 x 11.8 inch
Notes

Controllo di tono. Ingresso Fono.
Occorre prestare attenzione allo schema: Le tensioni di alimentazione sono invertite.

Source of data Guida Pratica Antique Radio II (2000)
Mentioned in A. Battocchio, La bella radio, Mosè Edizioni
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
