Allegretto 1010

Allegretto 1010; Telefunken (ID = 703806) Radio

Allegretto 1010; Telefunken (ID = 703807) Radio

Allegretto 1010; Telefunken (ID = 703808) Radio

Allegretto 1010; Telefunken (ID = 703809) Radio

Allegretto 1010; Telefunken (ID = 703810) Radio

Allegretto 1010; Telefunken (ID = 703812) Radio

Allegretto 1010; Telefunken (ID = 703813) Radio

Allegretto 1010; Telefunken (ID = 703814) Radio

Allegretto 1010; Telefunken (ID = 703815) Radio

Allegretto 1010; Telefunken (ID = 1998943) Radio
Allegretto 1010; Telefunken (ID = 40157) Radio Allegretto 1010; Telefunken (ID = 1837239) Radio
Allegretto 1010; Telefunken (ID = 1837240) Radio Allegretto 1010; Telefunken (ID = 1837241) Radio
Allegretto 1010; Telefunken (ID = 1837242) Radio Allegretto 1010; Telefunken (ID = 1837243) Radio
Allegretto 1010; Telefunken (ID = 1905966) Radio
Use red slider bar for more.
Allegretto 1010; Telefunken (ID = 40157) Radio
Telefunken: Allegretto 1010 [Radio] ID = 40157 800x393
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allegretto 1010, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1972–1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20: BF235 BF235 BF194 BF194 BF240 BF241 BC308 BC308 BC330 BC330 BC307 BC307 BC237 BC238 BC237 BC238 BD675 BD676 BD675 BD676 MC1307P
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Allegretto 1010 - Telefunken Deutschland TFK,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 485 x 108 x 193 mm / 19.1 x 4.3 x 7.6 inch
Notes 1 IC
Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W (Musik); zwei Lautsprecherboxen RS8 (260×108×193 mm, 2 kg) gehören zum Lieferumfang.
Die Telefunken Service-Dokumentation zum Allegretto 1010 führt 20 Transistoren und 1 IC (Stereo-Decoder MC1307P). Die VDRG-Handbücher nennen dagegen 5 ICs, hier wurden die Darlington-Endstufentransistoren BD675/676 als integrierte Schaltung eingeordnet.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1972/1973
Mentioned in Handbuch VDRG 1973/1974 (und 1974)

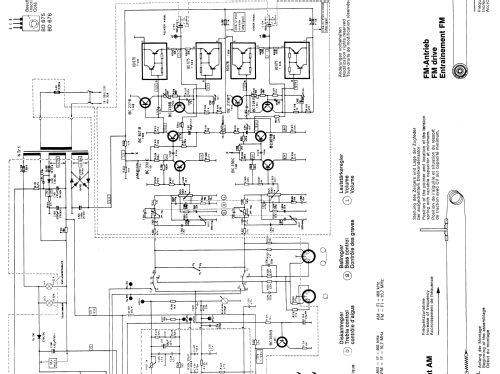

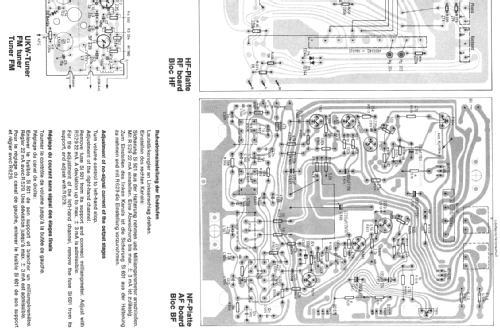

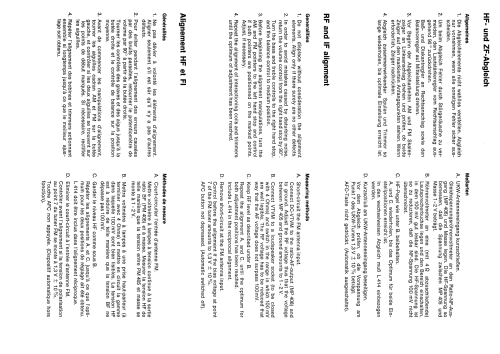

Literature/Schematics (1) -- Original-techn. papers.
