AM-FM-Receiver/Quartz-Controlled Digital Display TRX-3000 HiFi; Telefunken (ID = 1344419) Radio
Telefunken: AM-FM-Receiver/Quartz-Controlled Digital Display TRX-3000 HiFi [Radio] ID = 1344419 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM-Receiver/Quartz-Controlled Digital Display TRX-3000 HiFi, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

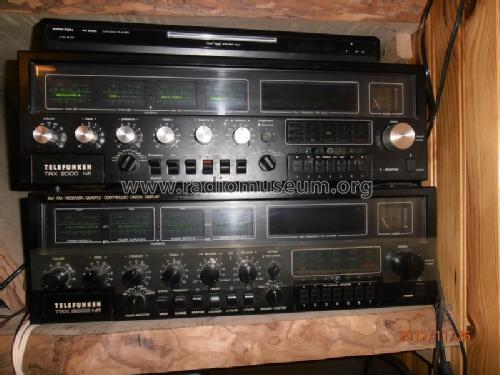

Celui du dessous

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1978–1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (unknown quality)
from Radiomuseum.org Model: AM-FM-Receiver/Quartz-Controlled Digital Display TRX-3000 HiFi - Telefunken Deutschland TFK,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 494 x 163 x 386 mm / 19.4 x 6.4 x 15.2 inch
Notes Telefunken AM-FM-Receiver/Quartz-Controlled Digital Display TRX-3000 HiFi,
6 Lautsprecheranschlüsse (4-8 Ohm), 2 Lautsprecheranschlüsse (8 Ohm).
2 x 100 Watt Sinusleistung (8 Ohm),
2 x 160 Watt Musikleistung (8 Ohm).
BTL (bridging transformerless loudspeaker)-Schaltung:
Um bei Stereo-Betrieb mit 8 Ohm-Boxen die maximale Ausgangsleistung (2 x 100 Watt Sinusleistung) zu erreichen, werden durch eine Brückenschaltung die hinteren Quadro-Kanäle mitgenutzt.
Echter Vierkanal-Receiver für 2-Raum-Stereo-Betrieb und Quadro-Raumklang.
Source of data -- Original prospect or advert
Mentioned in Funkschau ((21/1978, S. 1002))
Literature/Schematics (1) Funkschau (15/1978, S 730)

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
